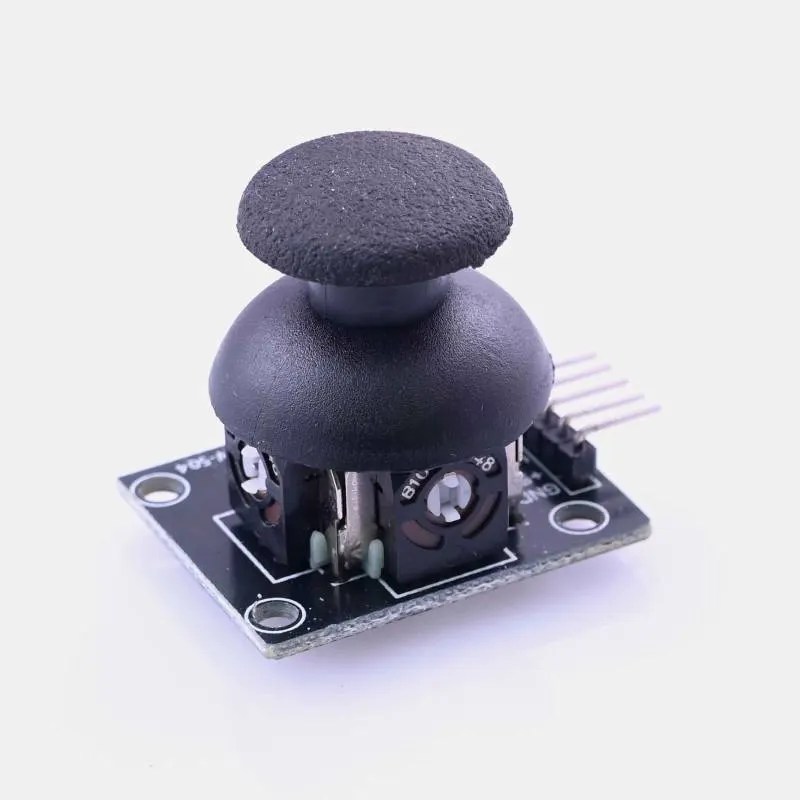

Dual Axis XY Joystick Module
Original price was: ₹99.00.₹49.00Current price is: ₹49.00.
Joystick Module Features and Specifications:
- Compatible with Arduino or with most of the microcontrollers
- Two independent Potentiometers – one for each axis ( X and Y)
- Auto return to center position
- Low weight
- Cup-type Knob
- Operating Voltage: 5V
- Internal Potentiometer value: 10k
- 2.54mm pin interface leads
- Dimensions: 1.57 in x 1.02 in x 1.26 in (4.0 cm x 2.6 cm x 3.2 cm)
- Operating temperature: 0 to 70 °C
In stock
This is a Dual Axis Joystick Module to measure position coordinates on the X and Y axis by moving the “hat”. Directional movements are controlled by simply two potentiometers of 10k ohm – one for each axis. This joystick also has a select button that is actuated when the joystick is press down.
Features:
- Dual-axis (X & Y) analog joystick for directional control.
- Push button switch included for extra functionality.
- Compatible with Arduino, ESP32, Raspberry Pi, and microcontrollers.
- Standard 2.54mm pins for easy breadboard and jumper wire use.
- Spring return mechanism for smooth centering.
- Compact and durable design for DIY and robotics projects.
Applications:
- Robotics control (robot car, robotic arm, drone gimbals).
- DIY game controllers and simulation setups.
- Arduino and Raspberry Pi projects for motion input.
- RC vehicle remote controls.
- Automation systems requiring manual analog input.
- Mechatronics learning projects.
| Weight | 10 g |
|---|
