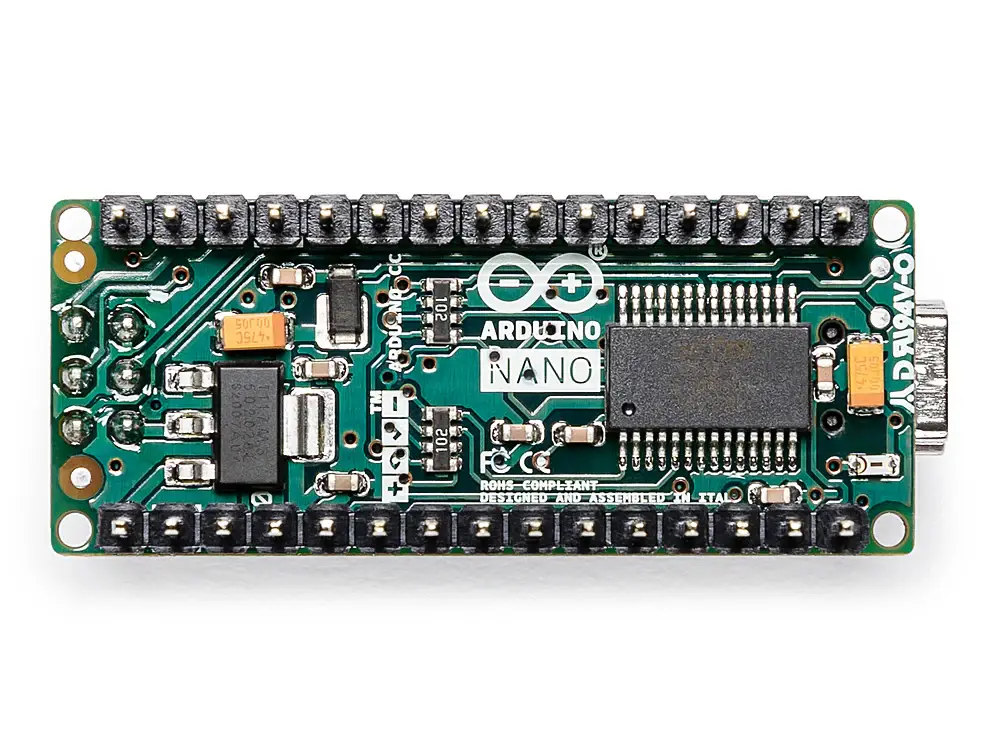

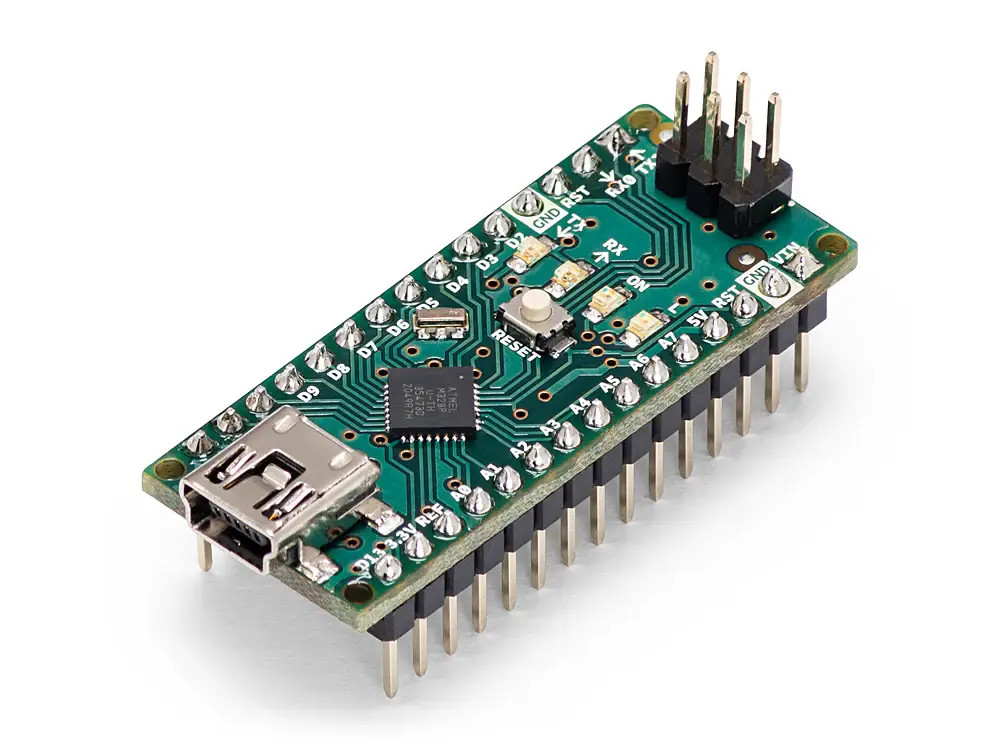

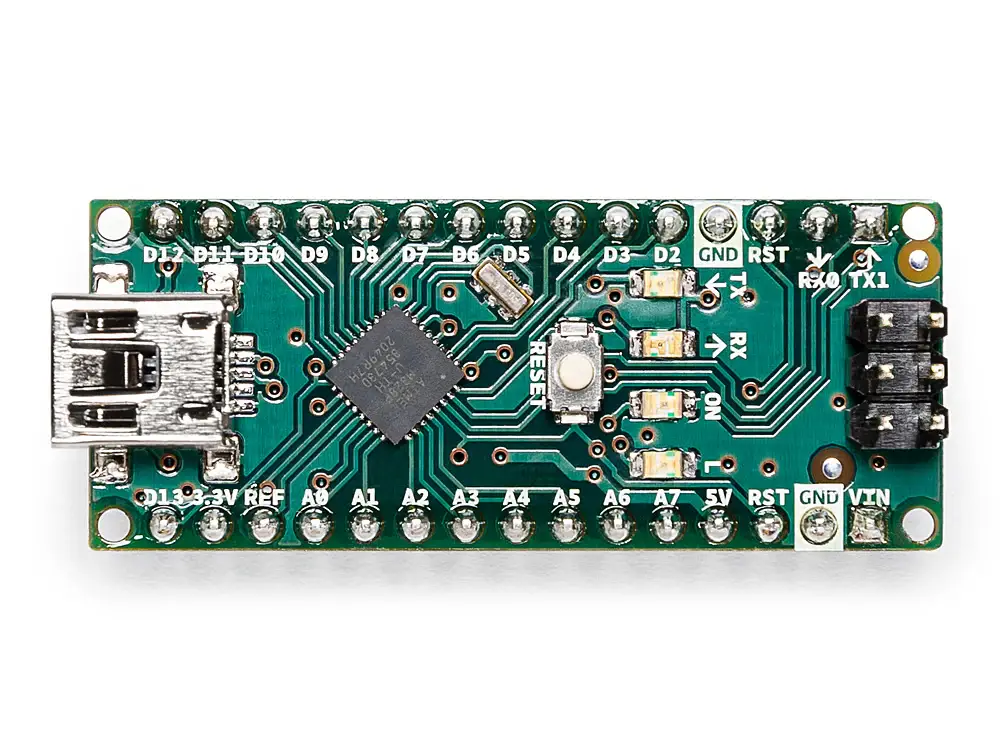

Arduino Nano A000005
Arduino Nano Original A000005
Arduino Nano Original

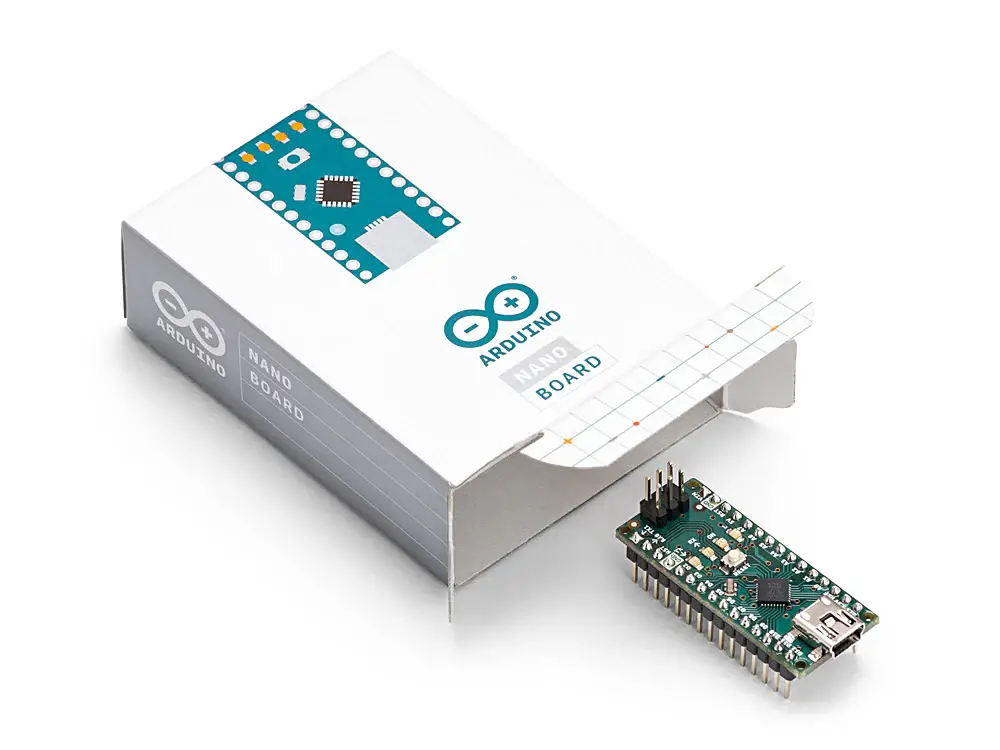

Arduino Nano Original A000005 Box
Arduino Nano

Arduino Nano Original A000005

Original price was: ₹2,500.00.Current price is: ₹1,470.00.

Tech specs

Microcontroller ATmega328
Architecture AVR
Operating Voltage 5 V
Flash Memory 32 KB of which 2 KB used by bootloader
SRAM 2 KB
Clock Speed 16 MHz
Analog IN Pins 8
EEPROM 1 KB
DC Current per I/O Pins 20 mA (I/O Pins)
Input Voltage 7-12V
Digital I/O Pins 22 (6 of which are PWM)
PWM Output 6
Power Consumption 19 mA
PCB Size 18 x 45 mm
Weight 7 g
Product Code A000005

In stock

Quantity Discount (%) Price
1 - 9 — ₹1,470.00
10 - 99 0.68 % ₹1,460.00
100 - 999 2.04 % ₹1,440.00
1,000+ 3.4 % ₹1,420.00

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

Applications:

  • Compact robotics projects
  • Wearable electronics
  • IoT and sensor-based systems
  • Educational and embedded systems learning
  • DIY portable electronics projects
Weight 7 g
SKU: 000104 Category: Tags: , , Brand:
