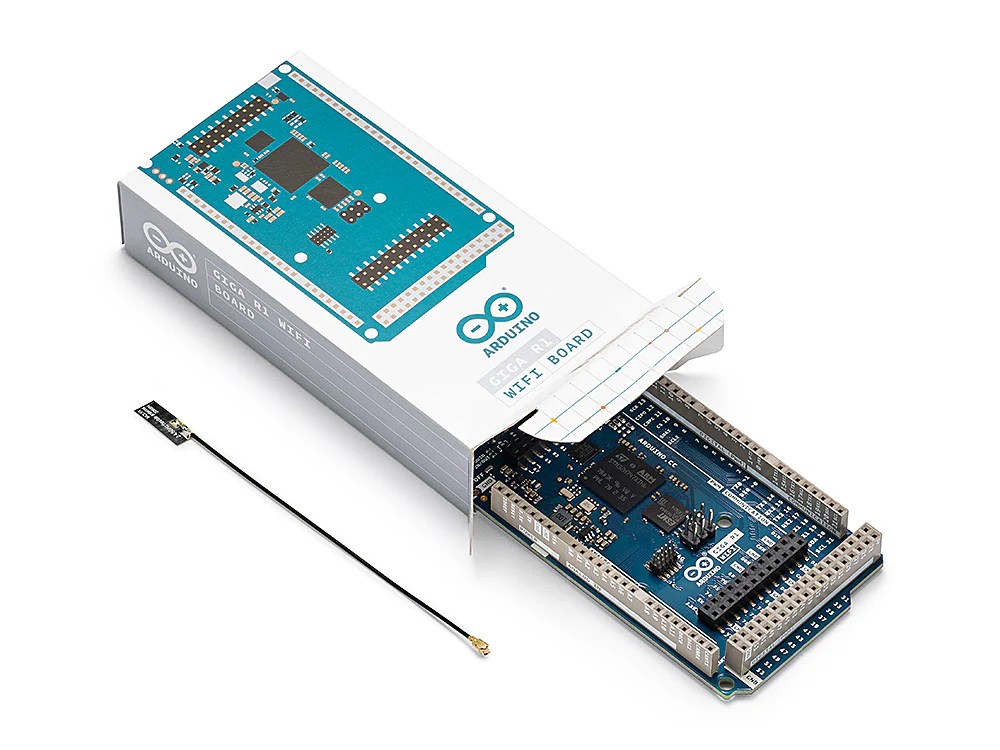

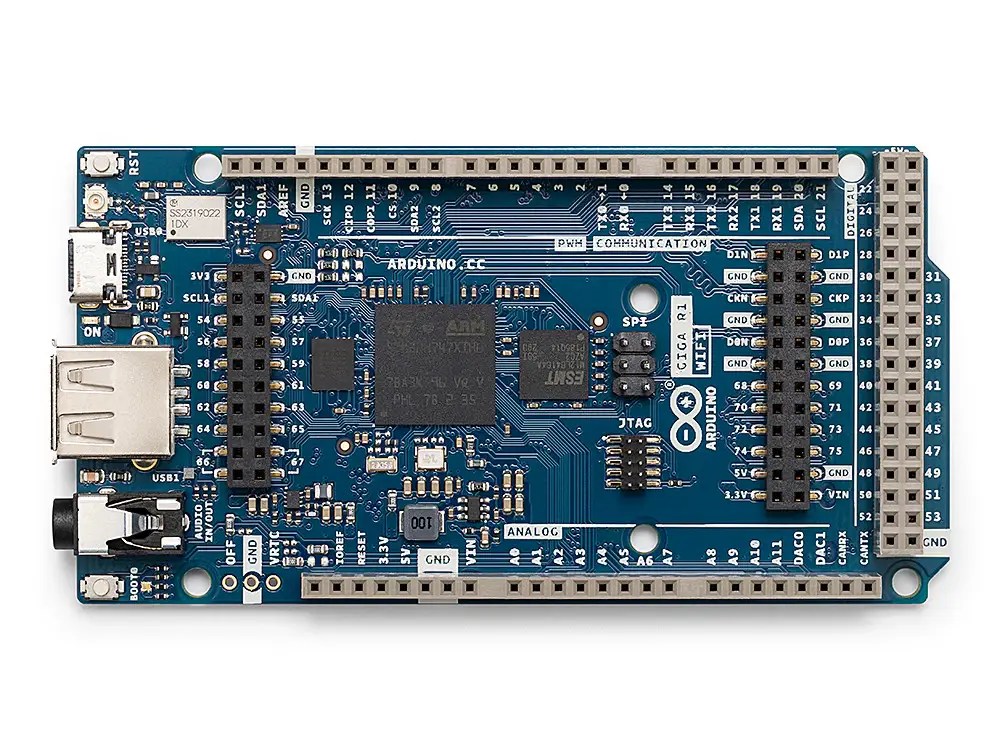

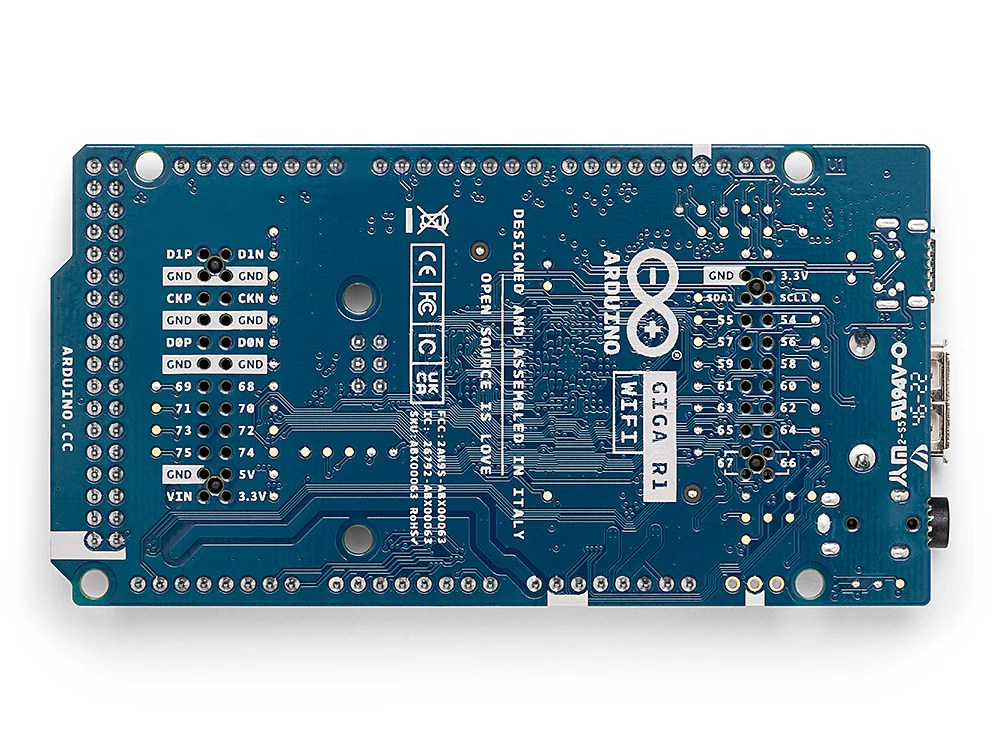

Arduino GIGA R1 WiFi (ABX00063)
Original price was: ₹7,700.00.₹6,200.00Current price is: ₹6,200.00.
You save (%)
Features
- Arduino GIGA R1 WiFi (ABX00063) powered by STM32H747XI dual-core (Cortex-M7 + Cortex-M4) microcontroller
- Built-in Wi-Fi and Bluetooth 5.0 for IoT, robotics, and wireless connectivity
- 76 digital I/O pins & 12 analog inputs for flexible hardware interfacing
- Expandable with MicroSD card slot, USB-C programming, and USB host support
- Compatible with Arduino IDE & MicroPython, ideal for AI, edge computing, and computer vision application.
Only 1 left in stock
🔹 Arduino GIGA R1 WiFi (ABX00063) – Dual-Core IoT & Edge Computing Development Board
The Arduino GIGA R1 WiFi (ABX00063) is a powerful dual-core Arduino development board designed for advanced IoT, robotics, AI, and edge-computing applications. Built around the STM32H747XI microcontroller, this board delivers exceptional performance with two processors running simultaneously, making it ideal for demanding real-time and high-speed projects.
With built-in Wi-Fi and Bluetooth connectivity, the Arduino GIGA R1 WiFi enables seamless cloud integration, wireless data communication, and smart automation. It is fully compatible with the Arduino ecosystem, allowing engineers, students, and makers to scale from prototyping to production with ease.
🔹 Key Features
- Dual-core STM32H747XI microcontroller (Cortex-M7 + Cortex-M4)
- High-performance clock speed up to 480 MHz
- Built-in Wi-Fi & Bluetooth® connectivity
- 76 GPIO pins for extensive I/O expansion
- USB-C interface for power, programming, and data
- On-board Ethernet support via external module
- Compatible with Arduino IDE, MicroPython, and CircuitPython
- Ideal for edge AI, robotics, IoT gateways, and industrial automation
🔹 Technical Specifications
| Parameter | Details |
|---|---|
| Microcontroller | STM32H747XI |
| Processor | Dual-core Cortex-M7 (480 MHz) + Cortex-M4 (240 MHz) |
| Operating Voltage | 3.3V |
| Digital I/O Pins | 76 |
| Analog Inputs | Multiple ADC channels |
| Connectivity | Wi-Fi, Bluetooth |
| USB Interface | USB-C |
| Board Type | Arduino GIGA Series |
| Part Number | ABX00063 |
🔹 Applications
- IoT & Smart Home Systems
- Robotics and Motion Control
- Edge AI and Machine Learning
- Industrial Automation
- Data Acquisition Systems
- Embedded Prototyping & R&D
- Educational & Research Projects
🔹 Why Choose Arduino GIGA R1 WiFi?
Unlike standard Arduino boards, the Arduino GIGA R1 WiFi provides high-speed dual-core processing, allowing one core to handle real-time tasks while the other manages connectivity and user applications. This makes it a perfect choice for complex embedded systems where performance and reliability are critical.
Its large number of I/O pins and advanced peripherals make it a future-ready development platform for professionals and serious makers.
🔹 Compatibility & Ecosystem
- Fully compatible with Arduino IDE
- Supports MicroPython & CircuitPython
- Works seamlessly with popular Arduino shields and sensors
- Easy integration with cloud platforms for IoT projects
🔹 Buy Arduino GIGA R1 WiFi in India
Buy the original Arduino GIGA R1 WiFi (ABX00063) online from Ezyki.com with fast shipping across India. Ideal for engineers, startups, educational institutes, and hobbyists looking for a powerful and reliable Arduino development board.
🔹 Frequently Asked Questions (FAQ)
❓ Is Arduino GIGA R1 WiFi suitable for beginners?
It is best suited for intermediate to advanced users, but beginners can use it for learning advanced embedded systems.
❓ Does Arduino GIGA R1 WiFi support MicroPython?
Yes, it supports MicroPython and CircuitPython.
❓ What makes this board different from Arduino Uno?
The GIGA R1 WiFi offers dual-core processing, higher speed, more GPIOs, and built-in wireless connectivity.
| Weight | 38 g |
|---|
