Sale!

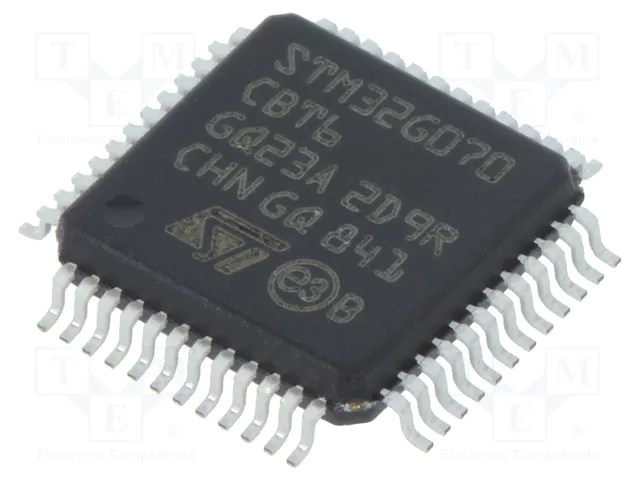

STM32G070CBT6 – Microcontroller – ST Microelectronics
Original price was: ₹250.00.₹104.00Current price is: ₹104.00.
| Attribute | Specification |
|---|---|
| Core | ARM Cortex‑M0+ @ up to 64 MHz |
| Flash / SRAM | 128 KB / 36 KB |
| Supply Voltage | 2.0 V – 3.6 V |
| Operating Temp | –40 °C to +85 °C |
| Peripherals | ADC, USART ×4, SPI ×2, I²C ×2, timers, DMA, RTC, CRC |
| Security | EEPROM protection, MPU support |
| Low‑Power Modes | Sleep, Stop, Standby |
| Package Options | LQFP-48(7×7) |
Out of stock
Key Features
- Core: ARM® Cortex‑M0+ 32‑bit running up to 64 MHz
- Memory: 128 KB Flash + 36 KB SRAM (32 KB with parity option)
- Voltage Range: 2.0 V to 3.6 V
- Temperature Range: –40 °C to +85 °C
- Low-Power Modes: Sleep, Stop, and Standby modes
- Peripherals:
- 1 × 12-bit ADC (up to 19 channels, 0.4 µs conversion)
- 11 timers: PWM, general-purpose, basic, watchdogs, SysTick
- 4 × USARTs with support for LIN, IrDA, ISO7816, auto-baud, wake-up
- 2 × SPIs (one supports I²S), up to 32 Mbps
- 2 × I²C with SMBus/PMBus support and wake-up
- Other Features: CRC unit, RTC with VBAT support, MPU, 7-channel DMA, extensive GPIOs (up to 59, many 5 V-tolerant), LQFP-48(7×7) packaging
Applications
- IoT devices and smart sensors
- Industrial automation and motor control
- Consumer electronics and smart appliances
- Medical and healthcare devices
- Development and education platforms
| Weight | 1 g |
|---|---|
| Manufacturer | ST Microelectronics |
| Package | LQFP-48(7×7) |
| Topology | Microcontroller IC |
