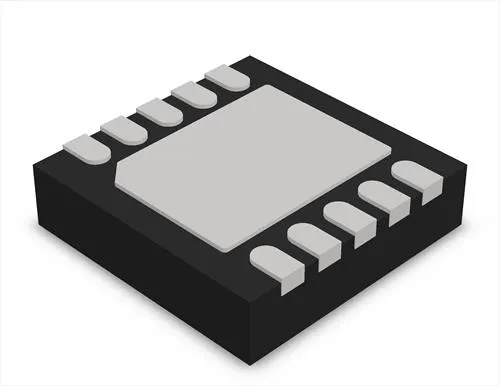

TDFN-10(3x3)

MAX5969AETB+T Power-over-Ethernet (PoE) controller IC – Maxim

Original price was: ₹750.00.Current price is: ₹650.00.

Features

  • IEEE 802.3af/at Compliant
  • 2-Event Classification
  • Simplified Wall Adapter Interface
  • PoE Classification 0 to 5 S 100V Input Absolute Maximum Rating
  • Inrush Current Limit of 180mA Maximum
  • Current Limit During Normal Operation Between 720mA and 880mA
  • Current Limit and Foldback
  • Legacy UVLO at 36V (MAX5969A)
  • IEEE 802.3af/at-Compliant, 40V UVLO (MAX5969B)
  • Overtemperature Protection
  • Thermally Enhanced, 3mm x 3mm, 10-Pin TDFN

Out of stock

Applications

  • IEEE 802.3af/at Powered Devices IP Phones
  • Wireless Access Nodes, IP Security Cameras
  • WiMAX® Base Station
Weight 1 g
Manufacturer

Analog Devices (Maxim)
Package

TDFN-10(3×3)
Topology

PoE Interface Controller IC
SKU: 000122 Categories: , Tags: , , Brand: ,
