RC522 RFID 13.56 MHz Reader Writer Module
Original price was: ₹250.00.₹70.00Current price is: ₹70.00.
Features:
- 13.56 MHz operating frequency (ISO/IEC 14443A)
- SPI, I²C, and UART communication support
- Works with 3.3 V (5 V tolerant)
- Read range up to 5 cm
- Compatible with MIFARE cards and tags
- Low power consumption
- Onboard PCB antenna
- Compact, lightweight design (~10–12 g)
In stock
RC522 – RFID Reader /Writer with Cards Kit includes a 13.56MHz RF reader and writer module that uses an RC522 IC and two S50 RFID cards tag. The MF RC522 is an integrated transmission module for contactless communication at 13.56 MHz. RC522 supports ISO 14443A/MIFARE mode. RC522 – RFID Reader features an outstanding modulation and demodulation algorithm to serve effortless RF communication at 13.56 MHz. The S50 RFID Cards will ease up the process helping you to learn and add the 13.56 MHz RF transition to your project.
The module uses SPI to communicate with microcontrollers. The open-hardware community already has a lot of projects exploiting the RC522 – RFID Communication, using Arduino.
Features:-
- The low-voltage, low-cost, small size of the non-contact card chip to read and write.
- 13.56MHz contactless communication card chip.
- MFRC522 supports the MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
- ISO14443A frames and error detection.
- Suitable for Smart meters and portable handheld devices.
- Advanced modulation and demodulation concept completely integrated with all types of 13.56MHz passive contactless communication methods and protocols.
- 14443A compatible transponder signals.
- Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
- The reader and RF card terminal design meet advanced application development and production needs.
- Can be directly loaded into the various reader molds, very convenient.
Specifications:-
- Operating Frequency: 13.56MHz
- Reader Distance: ≥ 50mm / 1.95″ (mifare 1)
- Operating Current :13-26mA / DC 3.3V
- Idle Current :10-13mA / DC 3.3V
- Peak Current: < 30mA
- Sleep Current: < 80uA
- Data transfer rate: Maximum 10Mbit/s
- Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
- Environmental Storage Temperature: -40 – 85 degrees Celsius
- Environmental Operating Temperature: -20 – 80 degrees Celsius
- Relative humidity: 5% – 95%
- Module interface: SPI
- Module Size: 4 × 6 cm

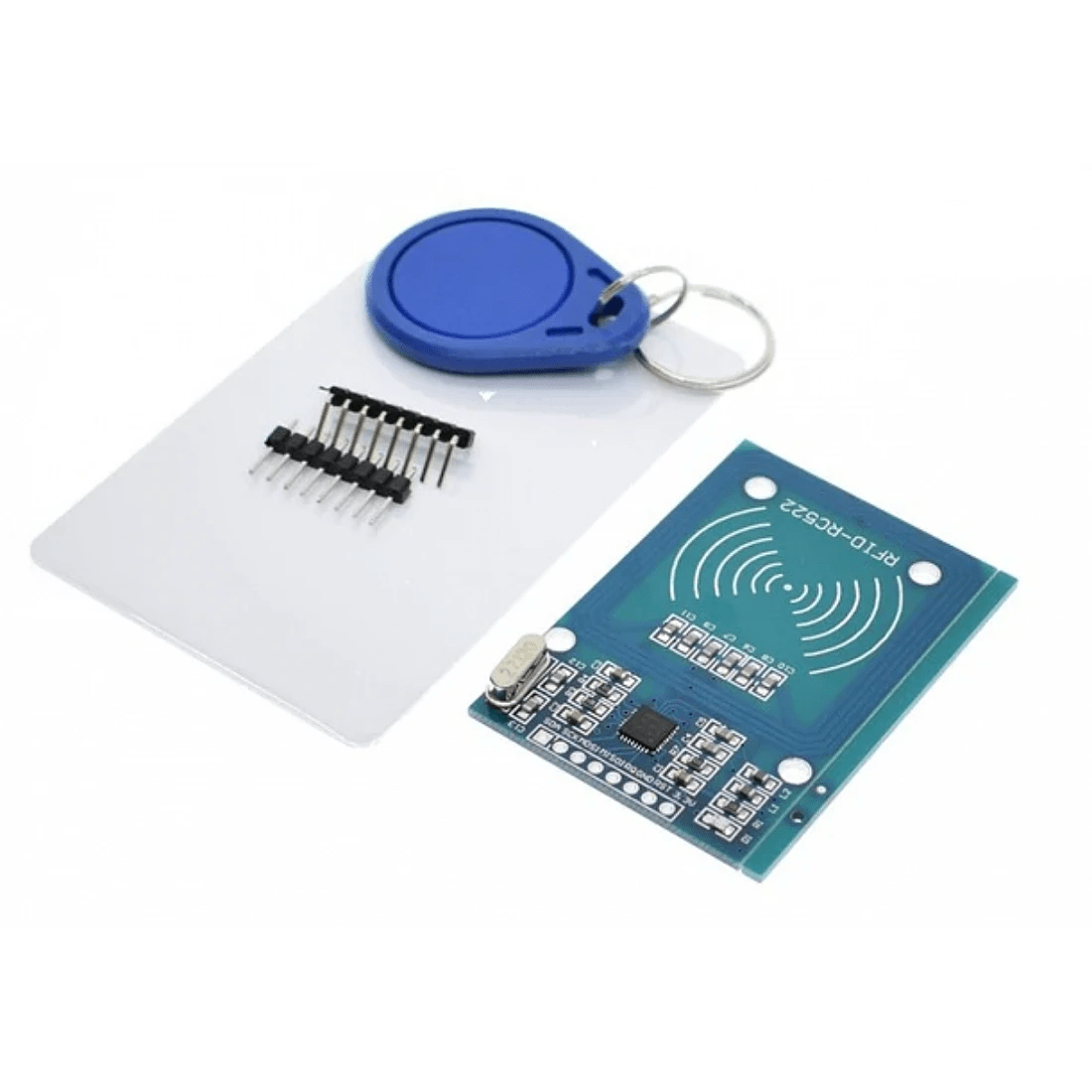

Package Content:-
- 1 x A RFID-RC522 Module
- 1 x RFID Blank Card
- 1 x Blue RFID Tag
- 1 x Straight Pin
- 1 x Curved Pin
Connection with Other Arduino Board:
| Signal | MFRC522 Reader/PCD Pin | Arduino Uno/101 Pin | Arduino Mega Pin | Arduino Nano v3 Pin | Arduino Leonardo/Micro Pin | Arduino Pro Micro Pin |
| RST/Reset | RST | 9 | 5 | D9 | RESET/ICSP-5 | RST |
| SPI SS | SDA(SS) | 10 | 53 | D10 | 10 | 10 |
| SPI MOSI | MOSI | 11 / ICSP-4 | 51 | D11 | ICSP-4 | 16 |
| SPI MISO | MISO | 12 / ICSP-1 | 50 | D12 | ICSP-1 | 14 |
| SPI SCK | SCK | 13 / ICSP-3 | 52 | D13 | ICSP-3 | 15 |
| Weight | 12 g |
|---|
