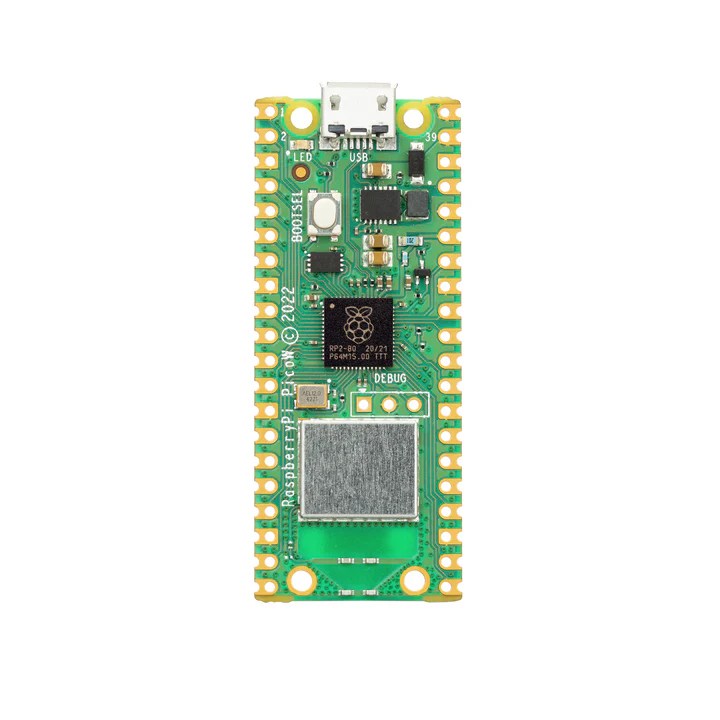

Raspberry Pi PICO W (Wireless)
Original price was: ₹900.00.₹449.00Current price is: ₹449.00.
Specifications
Form factor: 21 mm × 51 mm
CPU: Dual-core Arm Cortex-M0+ @ 133MHz
Memory: 264KB on-chip SRAM; 2MB on-board QSPI flash
Interfacing: 26 GPIO pins, including 3 analogue inputs
Peripherals:
- 2 × UART
- 2 × SPI controllers
- 2 × I2C controllers
- 16 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 8 × PIO state machines
Connectivity:
2.4GHz IEEE 802.11b/g/n wireless LAN, on-board antenna Bluetooth 5.2
- Support for Bluetooth LE Central and Peripheral roles
- Support for Bluetooth Classic Input power: 1.8–5.5V DC
Operating temperature: -20°C to +70°C
Production lifetime: Raspberry Pi Pico W will remain in production until at least January 2036
Out of stock
Raspberry Pi Pico W brings wireless connectivity to the best-selling Raspberry Pi Pico product line. Built around our RP2040 silicon platform, Pico products bring our signature values of high performance, low cost, and ease of use to the microcontroller space.
With a large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and rich peripheral set augmented with our unique Programmable I/O (PIO) subsystem, RP2040 provides professional users with unrivalled power and flexibility. Offering detailed documentation, a polished MicroPython port, and a UF2 bootloader in ROM, it has the lowest possible barrier to entry for beginner and hobbyist users.

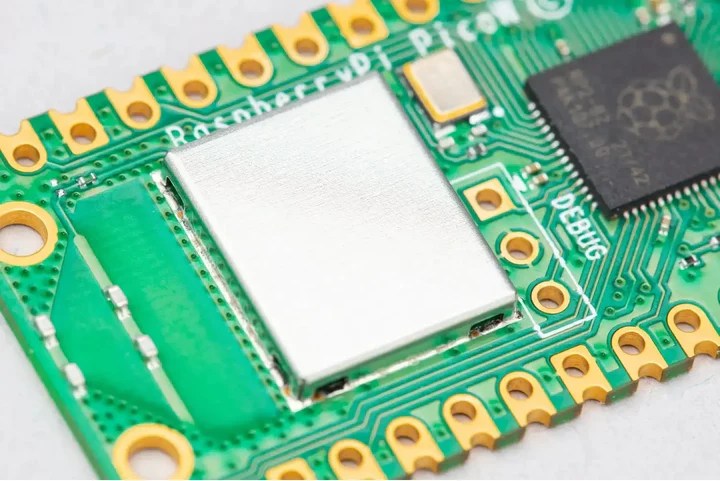

RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with a variety of low-power modes to support extended-duration operation on battery power. Raspberry Pi Pico W offers 2.4GHz 802.11 b/g/n wireless LAN support and Bluetooth 5.2, with an on-board antenna, and modular compliance certification.
It is able to operate in both station and access-point modes. Full access to network functionality is available to both C and MicroPython developers. Raspberry Pi Pico W pairs RP2040 with 2MB of flash memory, and a power supply chip supporting input voltages from 1.8–5.5V. It provides 26 GPIO pins, three of which can function as analogue inputs, on 0.1”-pitch through-hole pads with castellated edges.
Raspberry Pi Pico W is available as an individual unit, or in 480-unit reels for automated assembly.
