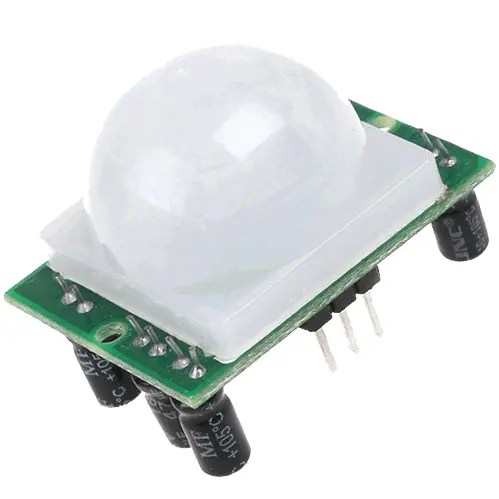

PIR Motion Detector Sensor Module
Original price was: ₹75.00.₹54.00Current price is: ₹54.00.
You save (%)
Features:
- Detection Distance: 3 to 7m (can be adjusted)
- Delay Time: 5 to 200s (Can be Adjusted, Default 5s +/- 3%)
- Blockade time: 2.5s (Default)
- Work temperature: -20 ~ +80°C
- Dimension: 3.2cm x 2.4cm x 1.8cm (Approx)
- Color: White + Green OR White + Blue
- Infrared Sensor with Control Circuit Board
- The Sensitivity and Holding Time Can be Adjusted
- Working Voltage Range: DC 4.5V- 20V
- Current Drain: <60uA
- Detection Range: <140°
- Voltage Output: High/Low level Signal: 3.3V TTL output
- Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
- Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
* Product Image is shown for illustrative purposes only and may differ from actual product.
In stock
- The module has an on-board pyroelectric sensor, conditioning circuitry and a dome shaped Fresnel lens.
- It is used to sense movement of people, animals, or other objects.
- Commonly used in burglar alarms and automatically-activated lighting systems.
- The Passive Infrared Sensor (PIR) sensor module is used for motion detection. It is often referred to used “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor.
| Weight | 15 g |
|---|
