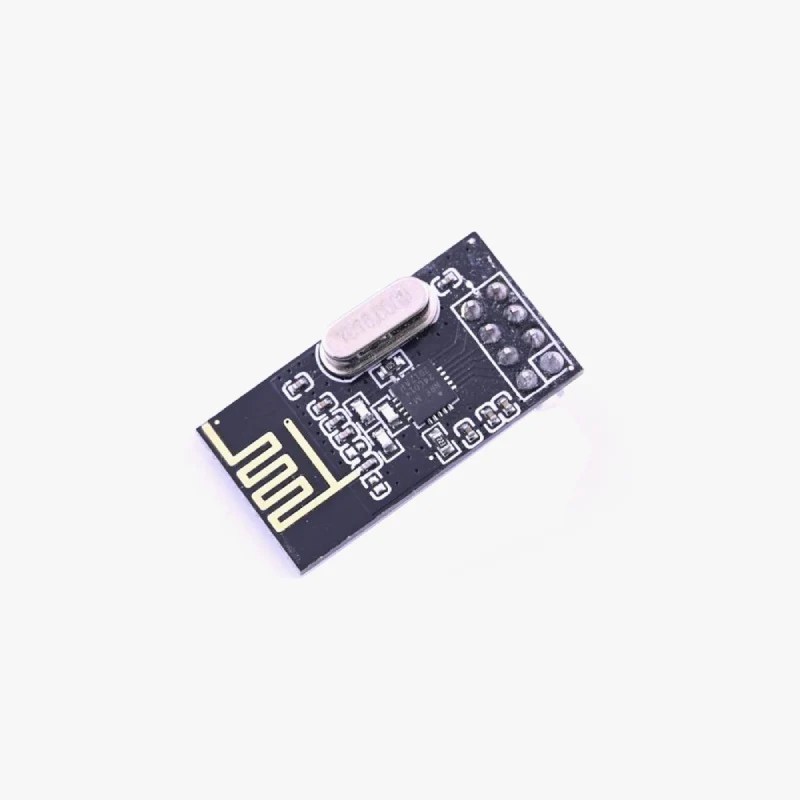

NRF24L01 2.4 MHz RF Transceiver Module
Original price was: ₹250.00.₹99.00Current price is: ₹99.00.
Specifications
- Low working voltage: 1.9 to 3.6 V
- I/O input voltage: 5V
- Wireless rate: 1 or 2 MBPS
- SPI interface rate: 0 to 8MBPS
- Transmission distance: 200 meters
- Dimensions: Width: 30 mm, Height: 10 mm, Depth: 20 mm
- Weight: 30 g
In stock
Features:
- Operates at 2.4GHz ISM band with GFSK modulation.
- Ultra-low power consumption, suitable for battery-powered projects.
- High data rate support: 250kbps, 1Mbps, and 2Mbps.
- Built-in CRC error detection and auto retransmission.
- SPI interface for easy integration with Arduino, ESP32, Raspberry Pi, and microcontrollers.
- Compact size with PCB antenna for stable wireless communication.
- Supports multi-point communication (up to 6 data pipes).
Applications:
- IoT (Internet of Things) devices and wireless sensor networks.
- Arduino and Raspberry Pi projects requiring wireless connectivity.
- Home automation systems and wireless switches.
- Robotics communication between multiple robots or robot & controller.
- Wireless data transmission in industrial and DIY projects.
- Remote controls for drones, RC cars, and appliances.
- Smart agriculture and telemetry systems.
Radio Frequency Modules are mostly used to add wireless capability to your project, you can use Wi-Fi modules or Bluetooth modules also but Radio Frequency modules will provide a longer range without the need of the internet and hence commonly used for RC control.
This 2400 MHz RF Transceiver Module is ultra-low power RF transceiver IC for the ISM (Industrial Scientific and Medical) band. The nRF Module has a transmission range of about 200m. It communicates with SPI communication protocols.
The nRF24L01 module is used in many applications like communication between two devices directly, home automation, wireless alarm systems, Robot control and monitoring systems, Remote sensing of temperatures and pressures or any sensor output, etc.
As the module employs SPI communication it can be used with both 3.3V and 5V microcontroller boards like Arduino, Raspberry Pi, AVR, NodeMCU, etc.
Connect MOSI MISO and SCK pins to respective SPI pins of your controller and connect CE and CSN pins to any GPIO pin.
| Weight | 30 g |
|---|
