SMA

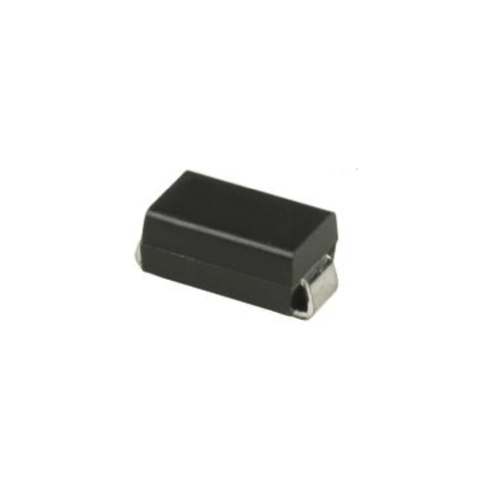

MTSGRM7A – M7 Diode (1N4007 Equivalent) – 1A 1000V Rectifier

Original price was: ₹1.00.Current price is: ₹0.80.

Features:

  • Reverse Voltage: 1000V
  • Forward Current: 1A Continuous
  • Peak Surge Current: 30A
  • Package: SMA (DO-214AC)
  • Reverse Recovery: Standard (Slow)
  • Polarity: Cathode marked with stripe
  • RoHS Compliant

In stock

Quantity Discount (%) Price
1 - 4,999 — ₹0.80
5,000 - 49,999 37.5 % ₹0.50
50,000 - 99,999 42.5 % ₹0.46
100,000+ 50 % ₹0.40

Applications:

  • AC to DC rectification
  • Power adapters and chargers
  • Reverse polarity protection
  • Freewheeling diode in power circuits
  • DC-DC converter circuits
Weight 0.1 g
Manufacturer

Magno Teknik
Topology

General Purpose Rectifier Diode
Package

DO-214AC(SMA)
SKU: 000123 Categories: , Tags: , , , , Brand:
