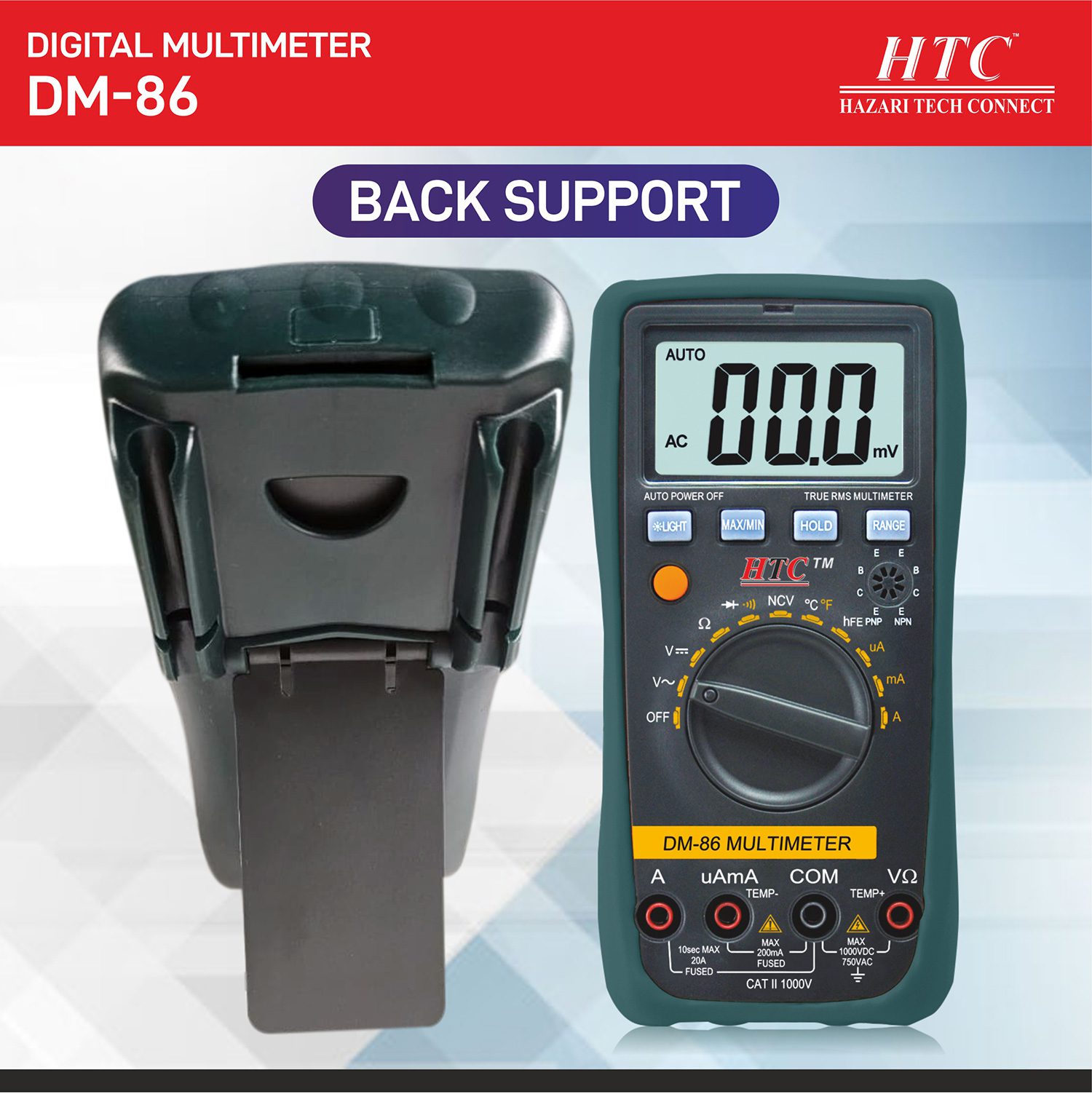

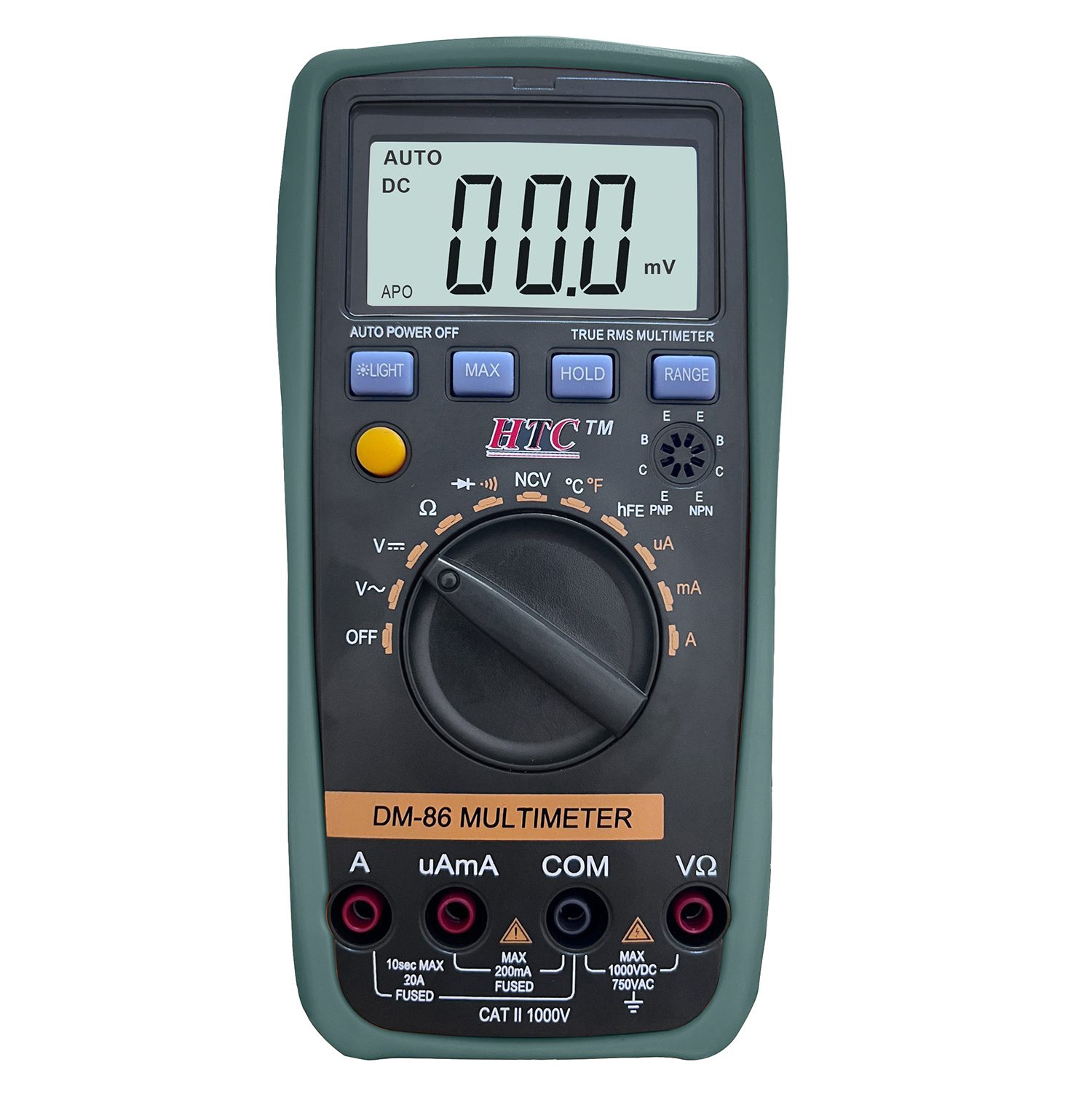

DM-86 Multimeter
HTC DM - 86 Multimeter - Image 2

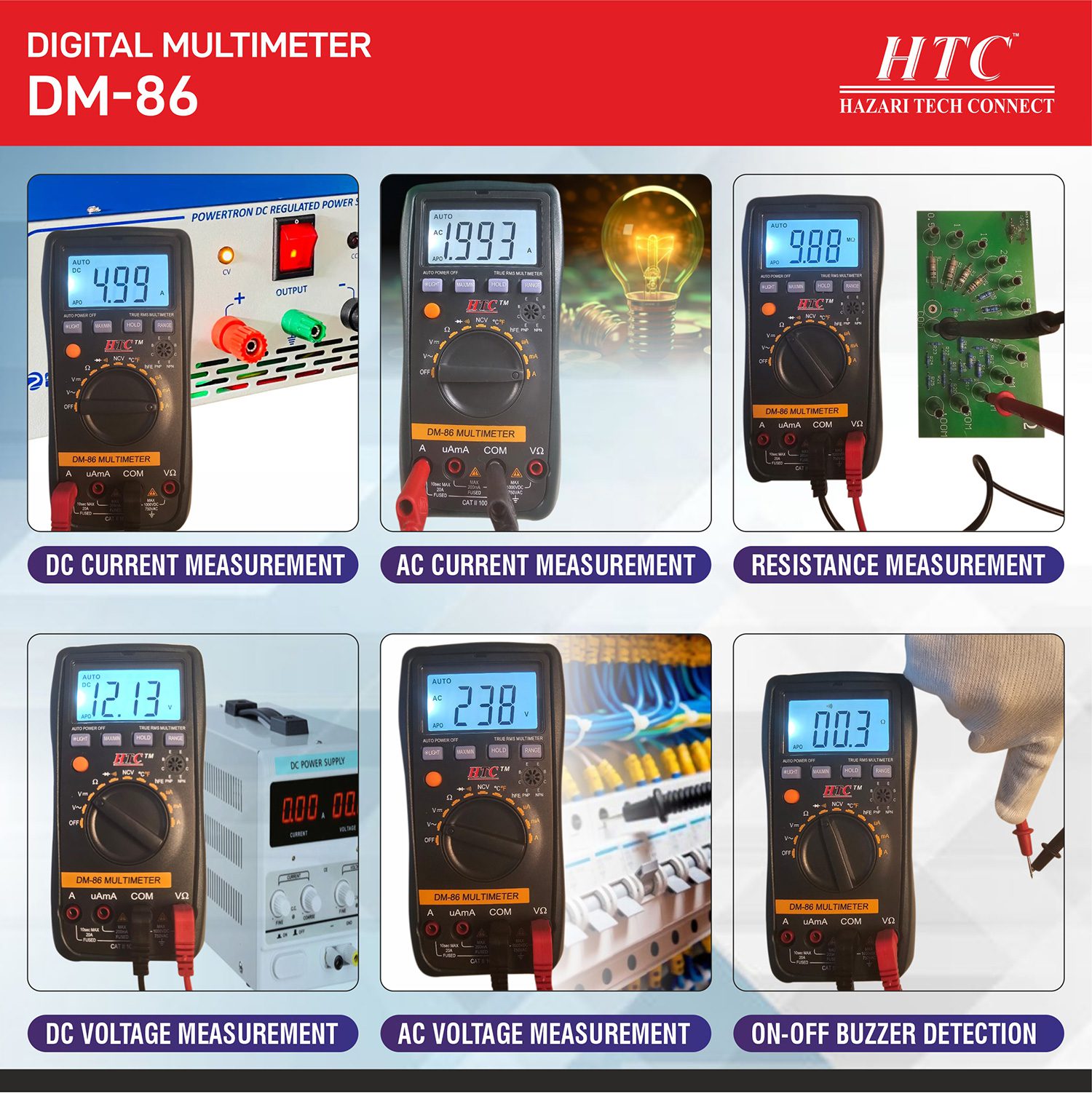

HTC DM - 86 Multimeter - Image 3
HTC DM - 86 Multimeter - Image 4

HTC DM – 86 Multimeter

Original price was: ₹1,522.00.Current price is: ₹1,215.00.

Features:

  • 3½ Digit Multimeter with Backlight
  • 1,999 Count
  • Non Contact Voltage (NCV)
  • Auto Power Off (APO) under natural operation
  • True RMS

Special Function

  • Diode Test NCV
  • Transistor Testing Input impedance 10MΩ
  • Continuity Buzzer Approx. <30+10 Sampling Rate 3 times per second
  • Low Battery Display Approx. <7.5V AC Frequency Response 40-400Hz
  • Auto Power OFF Approx. 30 min Power 9V (6F22) x 1

Standard Accessories: Test Lead, Manual

Dimension : 225(H) x 38(H) x 26(D)mm

Out of stock

  • DC Voltage:200mV/2V/20V/200V/1000V ±(0.5% + 4)
  • AC Voltage: 200mV/2V/20V/200V/750V ±(0.8% + 5)
  • DC Current: 200uA/2mA/20mA/20mA/2A/20A ±(1.0% + 5)
  • AC Current: 200uA/2mA/20mA/20mA/2A/20A ±(1.5% + 5)
  • Resistance 200 ±(0.8% + 1),
