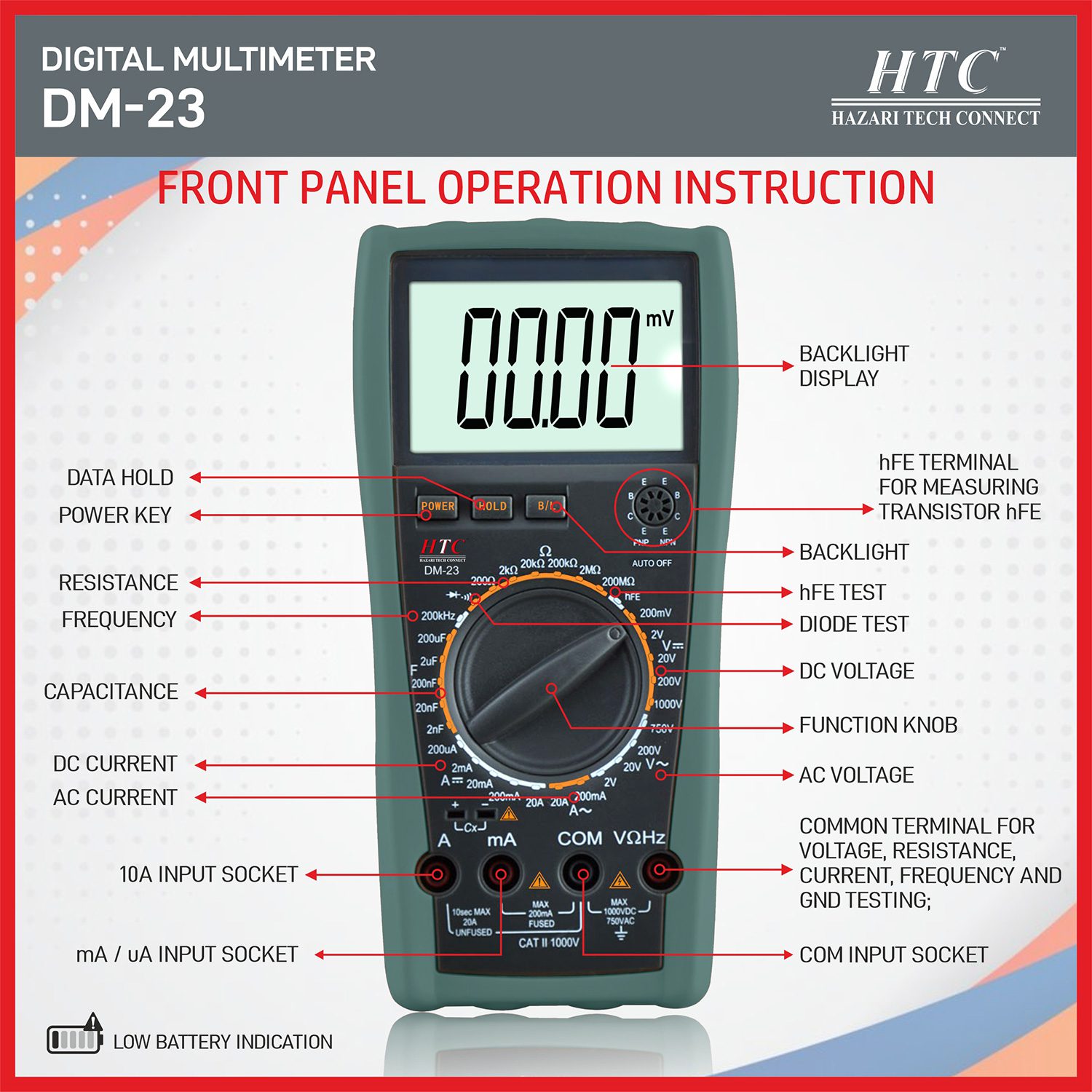

DM 23 Multimeter
HTC DM-23 Multimeter - Image 2
HTC DM-23 Multimeter - Image 3

HTC DM-23 Multimeter

Original price was: ₹3,550.00.Current price is: ₹2,770.00.
You save (%)

Features:

  • 4½ Digit Multimeter with Backlight
  • 19,999 Count
  • Meter is designed according to IEC 1010 standard
  • Auto Power Off (APO) under natural operation

Special Function

  • Diode Test Anti Shock Protect
  • hFE test Input impedance 10MΩ
  • Continuity Buzzer Approx. <30Ω+10Ω Sampling Rate 3 times per second
  • Low Battery Display Approx. <7.5V AC Frequency Response 40-400Hz
  • Auto Power OFF Approx. 30 min. Power 9V (6F22) X 1
  • Function Protection

Out of stock

Standard Accessories : Test Lead, Manual

Dimension : 175(H) x 83(W) x 31(D)mm

Highly accurate for a general-purpose DMM with ±0.05% DCV precision

Wide-ranging: up to 1000 V, 20 A DC/AC, frequency, capacitance

Handy extras: backlight, data/max hold, continuity/hFE tests

IEC 1010 compliant, auto power-off, robust build
