DHT11 Temperature And Humidity Sensor Module with LED
Original price was: ₹125.00.₹55.00Current price is: ₹55.00.
Features:
- Input Supply voltage (VDC): 3.3 ~ 5
- Supply Current (mA): measurement 0.3mA standby 60μA.
- Temperature measurement range: 0~50 degrees
- Temperature measurement error: ±2 degrees
- Humidity measurement range: 20%~95%RH
- Humidity measurement error: ±5%RH
In stock

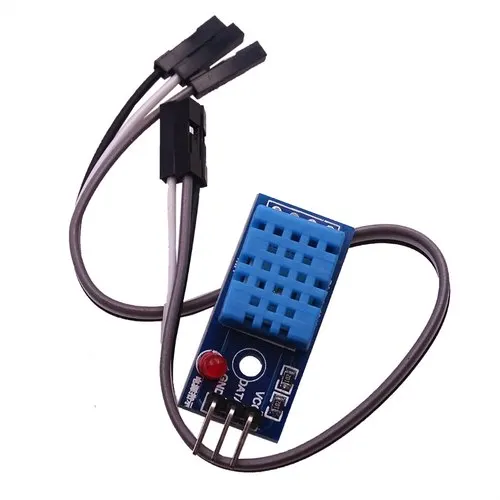

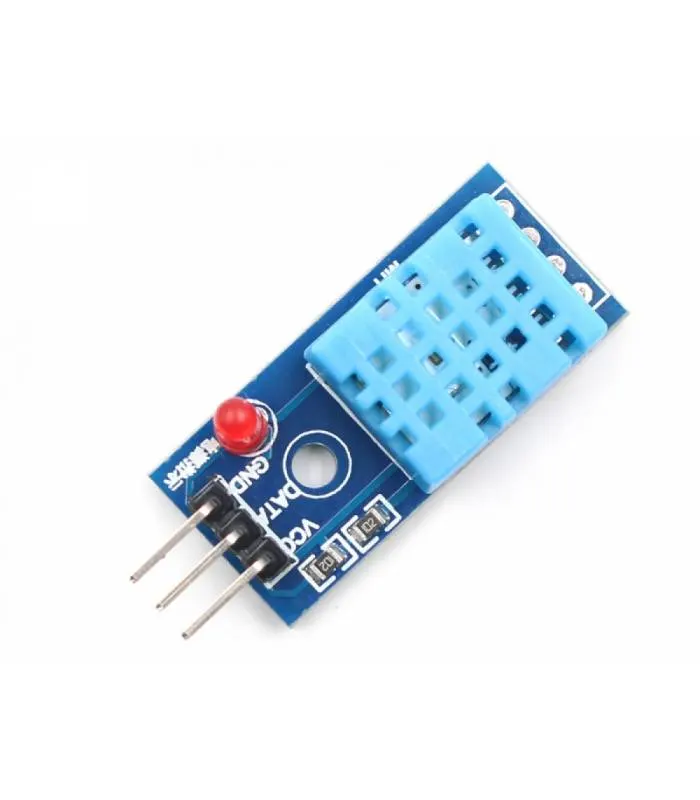

DHT11 Temperature And Humidity Sensor Module with LED
The DHT11 Temperature And Humidity Sensor Module with LED is a small humidity and temperature sensor that you can connect to your Arduino and get readings for temperature and humidity in the environment.
Features:
- DHT11 sensor with PCB and LED indicator along with cable; 3 to 5V power and I/O, 4 pins with 0.1″ spacing
- The board has pre-built 4.7K or 10K resistor, which you will need to use as a pull-up from the data pin to VCC.
- 2.5mA max current use during conversion (while requesting data)
- Good for 20-80% humidity readings with 5% accuracy
- Good for 0-50°C temperature readings ±2°C accuracy.
Applications:
- Weather monitoring stations
- IoT and smart home devices
- Greenhouse & agricultural monitoring
- HVAC control systems
- Data logging projects
- Educational electronics projects
Package Includes:
- 1 x DHT11 Temperature And Humidity Sensor Module.
- 3 x Female to Female Connecting cable.
| Weight | 10 g |
|---|
