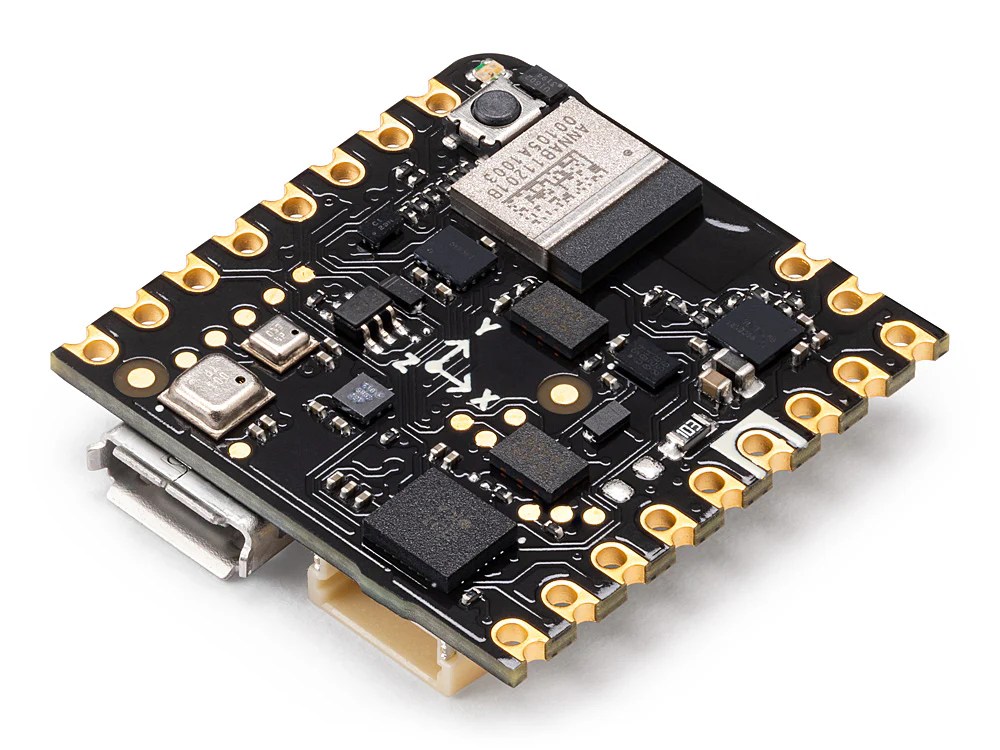

Arduino Nicla Sense ME ABX00050 – Tiny IoT Sensor Hub
Original price was: ₹5,530.00.₹5,100.00Current price is: ₹5,100.00.
Key Features
✅ Bosch BHI260AP: Smart 6-axis IMU with embedded AI for motion detection & gesture recognition.
✅ Bosch BMM150: 3-axis magnetometer for accurate heading and orientation.
✅ Bosch BMP390: High-resolution pressure sensor for accurate altitude detection.
✅ Bosch BME688: Environmental sensor for gas, humidity, temperature, and barometric pressure.
✅ Powerful MCU: nRF52832 (ARM Cortex-M4 @ 64 MHz, BLE 5.0) with 512 KB Flash, 64 KB RAM.
✅ Edge AI Ready: Run TinyML models for real-time analysis on-device.
✅ Tiny footprint: 22.86 x 22.86 mm (0.9 x 0.9 inches).
✅ Compatible: Works standalone or with Portenta/Arduino MKR boards.
✅ Ultra-low power consumption: Suitable for battery-powered IoT edge nodes.
Out of stock
Applications
- Predictive maintenance (vibration analysis, equipment monitoring)
- Air quality and environmental monitoring
- Wearable sensor devices
- Smart home and building automation
- Gesture and motion detection
- Portable weather stations
Description
The Arduino Nicla Sense ME (ABX00050) is a highly integrated, tiny IoT sensor hub that combines motion and environmental sensing with edge AI capabilities. Featuring Bosch’s latest sensors—including the BHI260AP IMU with embedded AI, the BMM150 magnetometer, BMP390 pressure sensor, and BME688 gas/environmental sensor—Nicla Sense ME delivers a rich data stream for your next IoT and machine learning projects.
Its ultra-low power design, Bluetooth 5.0 connectivity, and compatibility with Arduino Cloud and Portenta ecosystem make it ideal for developing battery-powered predictive maintenance systems, environmental monitoring stations, and smart devices that need accurate, real-time environmental and motion data.
The board is designed to handle TinyML models directly on the device, enabling real-time inference at the edge without continuous cloud connectivity, reducing latency and power consumption in your IoT solutions.
Technical Specifications
| Specification | Details |
|---|---|
| Microcontroller | nRF52832 (ARM Cortex-M4 @ 64 MHz) |
| Flash / RAM | 512 KB Flash / 64 KB RAM |
| Connectivity | Bluetooth 5.0 |
| Sensors | BHI260AP (6-axis IMU + AI), BMM150 (magnetometer), BMP390 (pressure), BME688 (gas, temp, humidity) |
| Operating Voltage | 3.3V |
| Input Voltage (VIN) | 5V |
| Dimensions | 22.86 x 22.86 mm |
| Weight | ~2 grams |
| Communication Interfaces | SPI, I2C, UART, BLE |
| Mounting | Castellated edges for soldering or use with pin headers |
| Weight | 2 g |
|---|
