Category: Vehicle Tracking System (VTS)

  • Sale! SOIC-16

    ILX3232DT – RS-232 Transceiver IC 16Pin SOIC – IKSEMICON

     Original price was: ₹45.00.Current price is: ₹25.00.

    Features:

    • RS-232 transceiver with ±15kV ESD protection
    • Operates from a single 3.0V to 5.5V supply
    • Two drivers and two receivers
    • Low power consumption (typically < 1µA in shutdown)
    • Data rate up to 250 kbps
    • Meets EIA/TIA-232 and ITU-T V.28 standards
    • Automatic power-down feature
    • Short-circuit and thermal protection
    • Available in SOIC-16 package
    Read more
  • Sale! SOP-8

    LD7575PS PWM Controller IC – LeadTrend

     Original price was: ₹80.00.Current price is: ₹45.00.

    Features:

    • High-Voltage Startup Circuit (up to 500V)
    • Current Mode PWM Control
    • Green-Mode Operation for Low Standby Power and No Audible Noise
    • UVLO (Under Voltage Lockout) for system stability
    • LEB (Leading-Edge Blanking) on CS pin to prevent false triggering
    • Programmable Switching Frequency with external resistor
    • Built-in Slope Compensation for improved stability
    • OVP (Over Voltage Protection) on Vcc
    • OLP (Over Load Protection) with auto-recovery
    • 500mA Gate Driving Capability for external MOSFET
    Read more
  • Sale! SOT23-5L

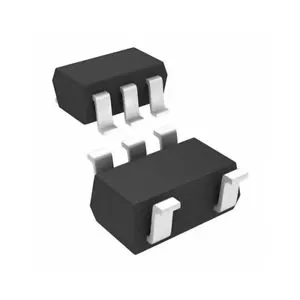

    LDK220M33R LDO Voltage Regulator | STMicroelectronics

     Original price was: ₹45.00.Current price is: ₹20.00.

    Key Features:

    • Fixed Output Voltage: 3.3V
    • Output Current: up to 200mA
    • Low Quiescent Current: 25 µA typ.
    • Low Dropout Voltage: 200 mV typ.
    • Internal short-circuit and thermal protection
    • Package: SOT-23-5L
    • Operating Temperature: -40°C to +125°C
    Read more
  • Sale! TDFN-10(3x3)

    MAX5969AETB+T Power-over-Ethernet (PoE) controller IC – Maxim

     Original price was: ₹750.00.Current price is: ₹650.00.

    Features

    • IEEE 802.3af/at Compliant
    • 2-Event Classification
    • Simplified Wall Adapter Interface
    • PoE Classification 0 to 5 S 100V Input Absolute Maximum Rating
    • Inrush Current Limit of 180mA Maximum
    • Current Limit During Normal Operation Between 720mA and 880mA
    • Current Limit and Foldback
    • Legacy UVLO at 36V (MAX5969A)
    • IEEE 802.3af/at-Compliant, 40V UVLO (MAX5969B)
    • Overtemperature Protection
    • Thermally Enhanced, 3mm x 3mm, 10-Pin TDFN
    Read more
  • Sale! SMA

    MTSGRM7A – M7 Diode (1N4007 Equivalent) – 1A 1000V Rectifier

     Original price was: ₹1.00.Current price is: ₹0.80.

    Features:

    • Reverse Voltage: 1000V
    • Forward Current: 1A Continuous
    • Peak Surge Current: 30A
    • Package: SMA (DO-214AC)
    • Reverse Recovery: Standard (Slow)
    • Polarity: Cathode marked with stripe
    • RoHS Compliant
    Add to cart
  • Sale! STM32G070CBT6

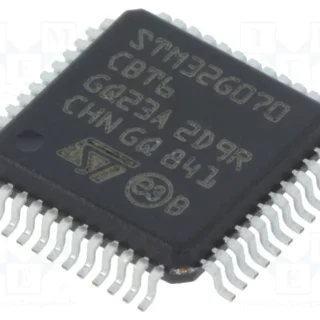

    STM32G070CBT6 – Microcontroller – ST Microelectronics

     Original price was: ₹250.00.Current price is: ₹104.00.
    Attribute Specification
    Core ARM Cortex‑M0+ @ up to 64 MHz
    Flash / SRAM 128 KB / 36 KB
    Supply Voltage 2.0 V – 3.6 V
    Operating Temp –40 °C to +85 °C
    Peripherals ADC, USART ×4, SPI ×2, I²C ×2, timers, DMA, RTC, CRC
    Security EEPROM protection, MPU support
    Low‑Power Modes Sleep, Stop, Standby
    Package Options LQFP-48(7×7)
    Read more
