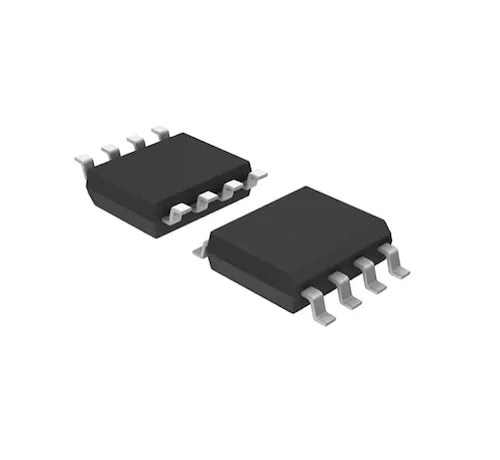

SOP-8

RT7333M – High-Efficiency PFC Controller – Richtek

Original price was: ₹200.00.Current price is: ₹180.00.

Features
  • CRM/DCM Operation
  • Constant On-Time Control (Voltage Mode)
  • Built-In Loop-Compensation Circuit
  • High Efficiency
    – Tracking Boost
    – Valley Switching in Both CRM and DCM
    – Frequency Reduction at Middle Load and Light Load
  • Disable Function
    – Low Quiescent Current (<17μA)
  • Ultra-Low Start-Up Current (<5μA)
  • Maximum Switching Frequency Clamping (130kHz/176kHz/246kHz/397kHz)
  • Burst Mode Operation at Light Load
  • Maximum/Minimum On-Time Limit
  • Cycle-by-Cycle Current Limit
  • Output Overvoltage Protection (OVP)
  • Undervoltage-Lockout (UVLO)

Out of stock

The RT7333M is a Power Factor Correction (PFC) controller incorporates advanced technologies such as tracking boost, valley switching, and frequency reduction. It operates in both Critical Conduction Mode (CRM) and Discontinuous Conduction Mode (DCM).The feed-forward schemes and THD optimizer ensure a near-unity power factor across a wide range of input voltages and output power levels.The totem-pole gate driver features an 800mA source current and a 1000mA sink current driving capability.

The RT7333M includes a disable function with an extremely low quiescent current (<17μA) to reduce power consumption in standby mode. The controller integrates comprehensive safety protection features, such as input undervoltage-lockout, output overvoltage protection, undervoltage protection, and cycle-by-cycle current limit.

The RT7333M is a highly integrated solution with a built-in programmable loop-compensation circuit to minimize the need for external components. It is available in a SOP-8 package.The recommended junction temperature range spans from -40°C to 125°C, while the ambient temperature range extends from -40°C to 85°C.

Applications

  • USB-PD
  • PCs, NBs, TVs, Monitors
  • General Power Supplies



Key Specifications
RT7333M
Status Active
Supply Voltage (min) (V) 7
Supply Voltage (max) (V) 34
Quiescent Current (typ) (mA) 0.012
Driver Source Current (typ) (mA) 800
Driver Sink Current (typ) (mA) 1000
Features Cycle-by-Cycle Current Limit;Internal Compensation;OCP;OVP;UVP;Voltage Mode Control
Package Type SOP-8
