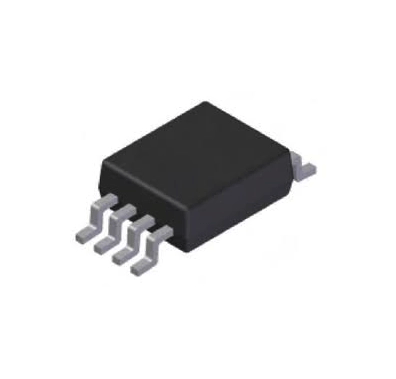

LM393 Dual Comparator IC (MSOP-8)

LM393 Low Power Low Offset Voltage Dual Comparator IC MSOP-8 Package

Name: LM393 Dual Comparator IC (MSOP-8)
SKU: LM393 Dual Comparator IC (MSOP-8)
Price: 9.00 INR
Availability: OutOfStock

• Low Input Biasing Current: 25 nA

• Low Input Offset Current: ±5 nA

• Maximum Offset voltage: ±3 mV

• Wide Supply – Voltage Range: 2.0 V to 36 V – Single or Dual Supplies: ±1.0 V to ±18 V

• Very Low Supply Current Drain (0.4 mA) — Independent of Supply Voltage

• Input Common-Mode Voltage Range Includes Ground

• Differential Input Voltage Range Equal to the Power Supply Voltage

• Low Output Saturation Voltage: 250 mV at 4 mA

• Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS logic systems

Out of stock

The LM193 series consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages.

Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.

Application areas include limit comparators, simple analog to digital converters; pulse, square wave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates.
