LDR Module 4 Pin | Digital & Analog Light Sensor for Arduino

How to Use the LDR Module LM393 4 Pin with Arduino for Light Sensing Projects

Introduction

Light sensing is essential for automating lights, saving energy, and creating interactive projects. The LDR Module LM393 4 Pin offers both digital and analog outputs, making it perfect for beginners and advanced makers using Arduino, ESP32, or Raspberry Pi.

In this guide, we’ll explore how this module works, its features, and how to use it in your projects.

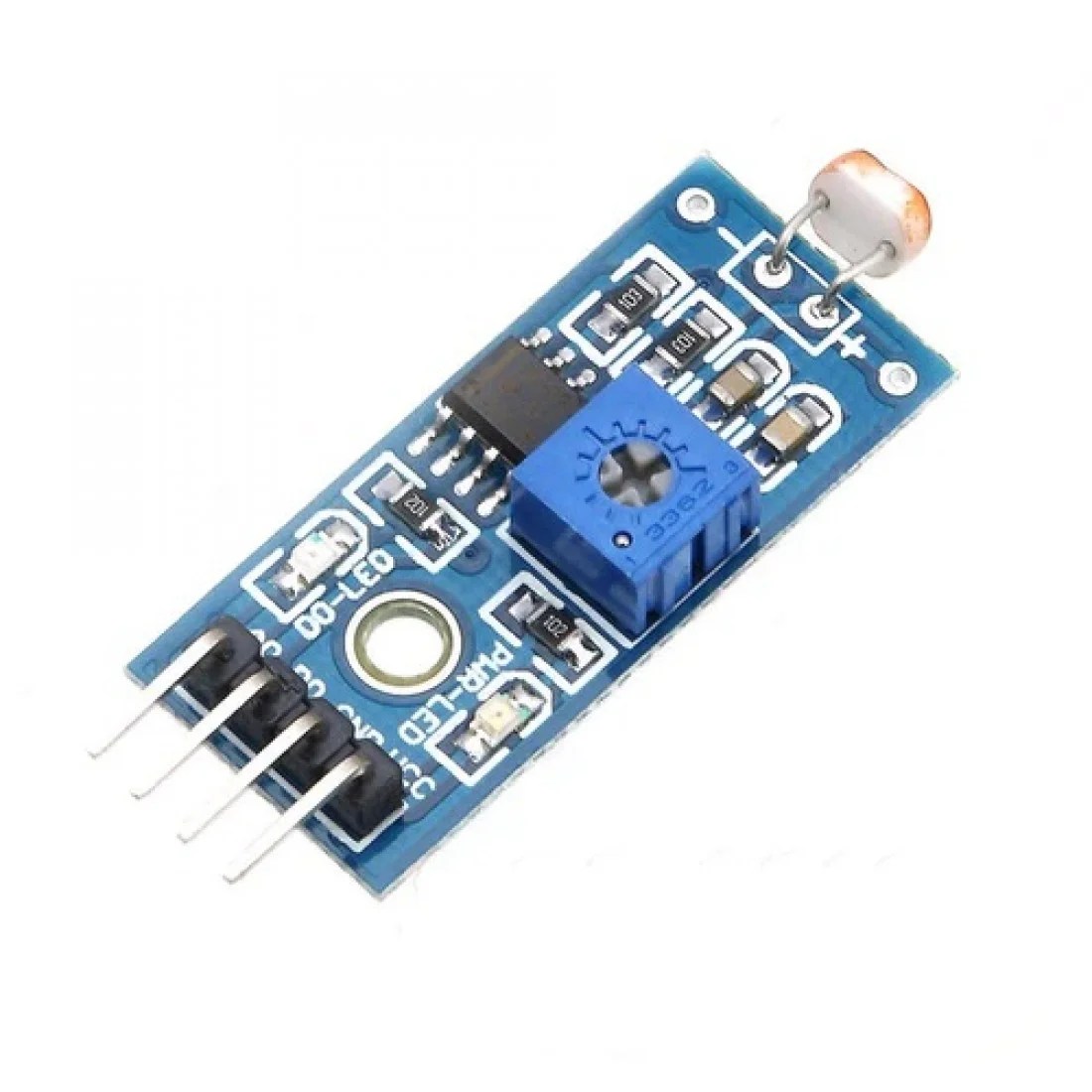

What is the LDR Module LM393 4 Pin?

The module combines:
✅ An LDR (Light Dependent Resistor) to detect light.
✅ An LM393 comparator to provide a digital output when light crosses a threshold.
✅ An analog output (A0) to measure exact light levels.

This makes it more versatile than a 3-pin module, allowing both light detection and intensity measurement in your projects.

Key Features

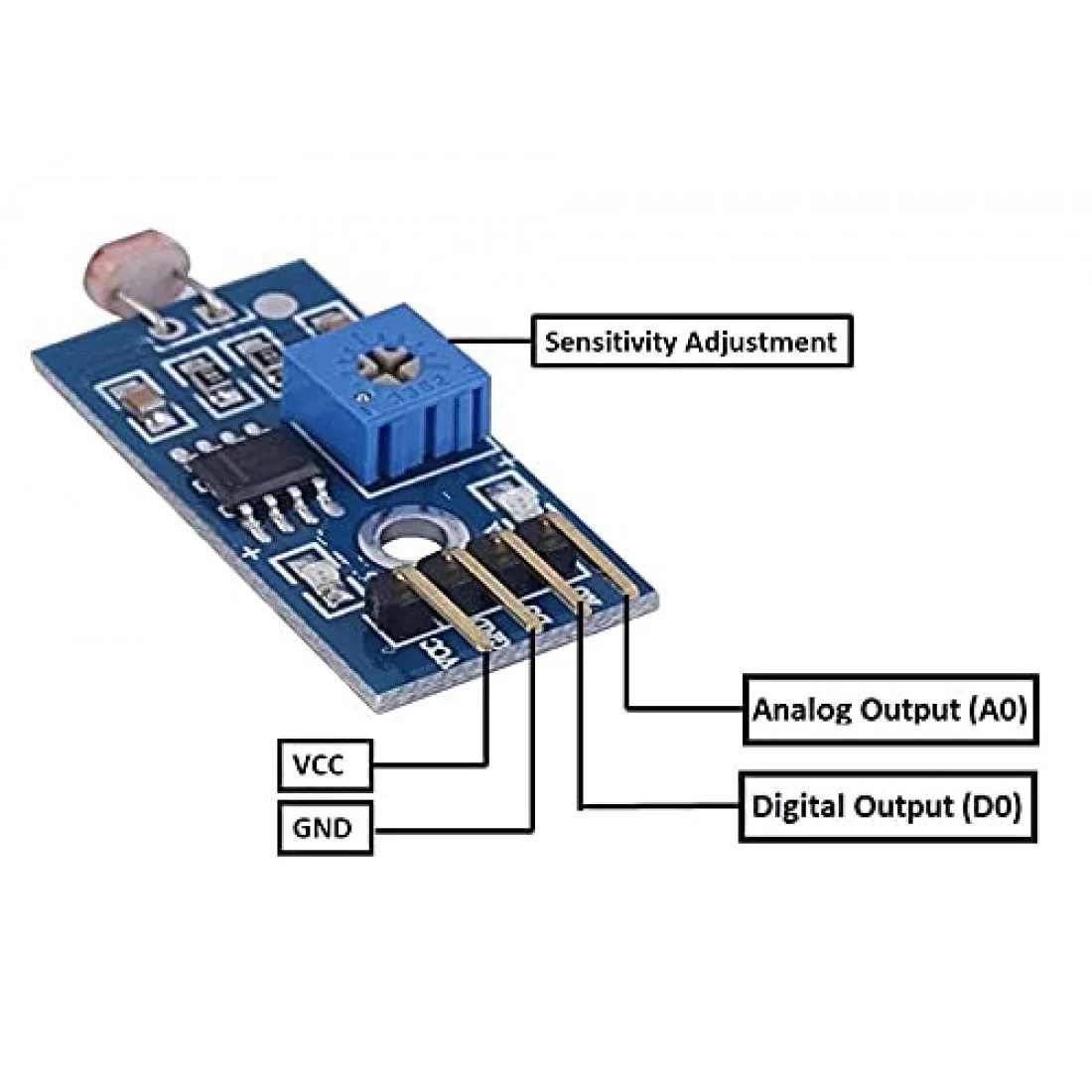

• Digital and Analog Outputs (D0, A0)
• Adjustable Sensitivity via potentiometer
• Compatible with Arduino and ESP32
• Compact and easy to integrate
• Low power consumption

Applications: LDR Module LM393 4 Pin

✅ Automatic Street Lights: Turn lights on/off automatically based on ambient light levels.
✅ Smart Home Automation: Control curtains, lights, or alarms using real-time light sensing.
✅ Solar Tracking Systems: Adjust solar panels based on light intensity for maximum efficiency.
✅ Light-Based Alarms: Trigger buzzers or alerts when light levels drop suddenly (e.g., hand covering sensor).
✅ Data Logging Projects: Monitor and record light levels over time using the analog output.
✅ Smart Garden Systems: Activate grow lights or shading systems based on sunlight availability.
✅ Energy Saving Projects: Switch off unnecessary lights when sufficient daylight is available.
✅ Robotics: Use in line-following robots or light-seeking robots for learning projects.
✅ DIY Electronics Projects: Integrate into any light-based interactive system with Arduino, ESP32, or Raspberry Pi.

How to Connect LDR Module LM393 with Arduino

Pins:

• VCC → 5V on Arduino
• GND → GND
• D0 → Any digital pin (e.g., D2)
• A0 → Any analog pin (e.g., A0)

Arduino Code for LDR Light Sensor Module:

int digitalPin = 2;
int analogPin = A0;

void setup() {
pinMode(digitalPin, INPUT);
Serial.begin(9600);
}

void loop() {
int digitalValue = digitalRead(digitalPin);
int analogValue = analogRead(analogPin);

Serial.print(“Digital: “);
Serial.print(digitalValue);
Serial.print(” | Analog: “);
Serial.println(analogValue);

delay(500);
}
