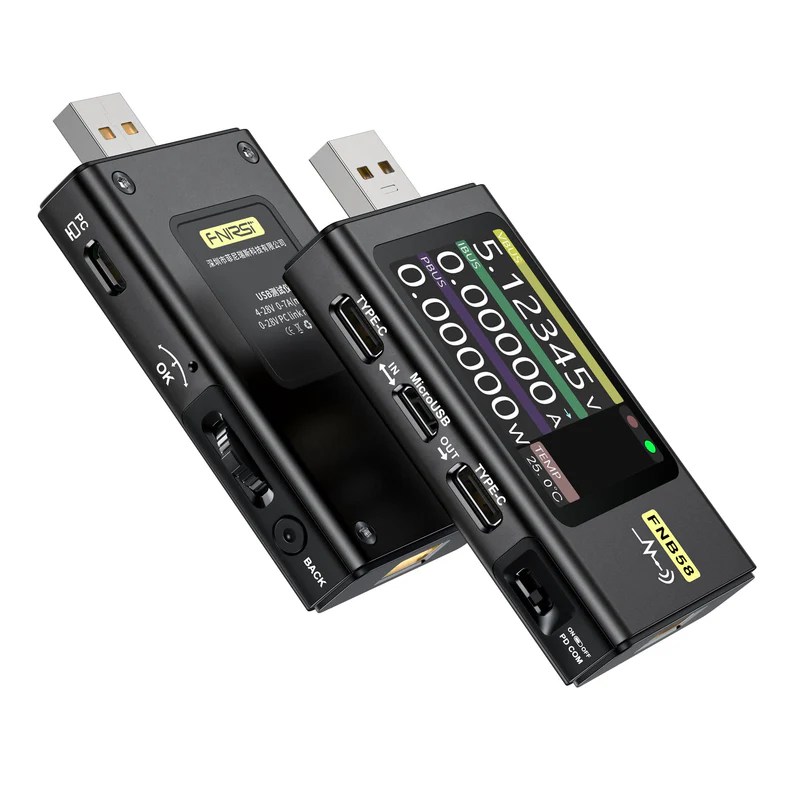

FNIRSI FNB58 USB Fast Charge Tester

FNIRSI FNB58 USB Fast Charge Tester

Original price was: ₹7,500.00.Current price is: ₹5,200.00.

  • 2.0-inch Clear TFT LCD display
  • Versatile USB tester
  • Detects multiple fast charge protocols
  • Records precise parameters
  • Includes unique detection features
  • Upgraded PD3.1 protocol
  • PD240 data line detection
  • Real-time detection
  • Type-C & USB Interface
  • Automatic protocol detection protocol decoy
  • USB Helper, Multi-Interface Compatibility
  • Comprehensive Measurement Capabilities: Voltage, Current, Power, Resistance, Energy Usage
  • Extended Data Storage: 99 Days

Out of stock

The FNB58 USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.

Basic Specifications:

External 16-bit ADC, PD protocol physical chip

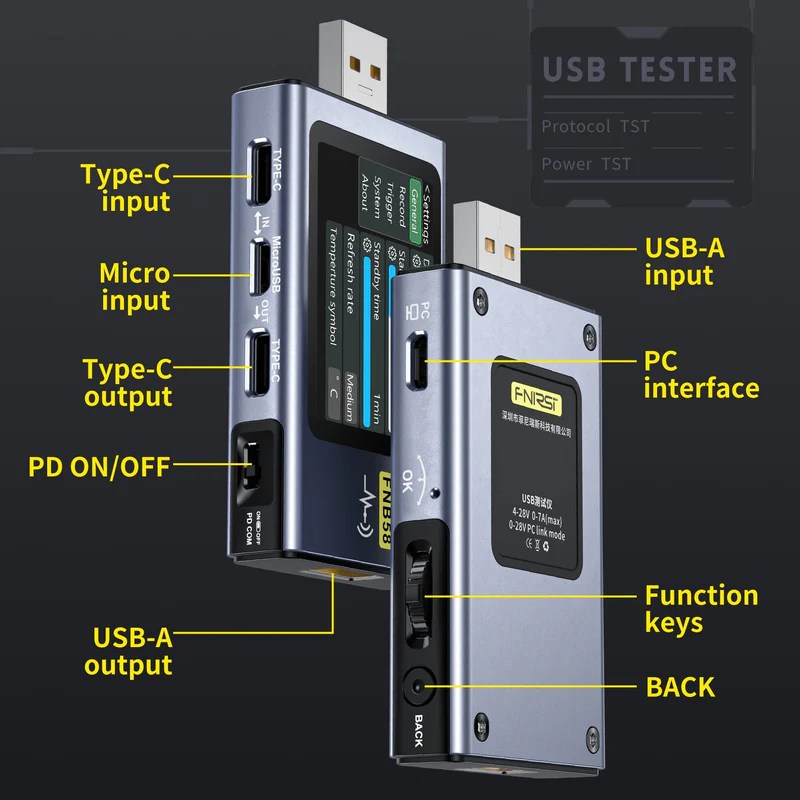

Interface types:

  • 5P high-current USB-A port
  • 24P full-pin Type-C port
  • Micro-USB port

Display:

  • 2.0-inch IPS color display screen, resolution 320*240
  • CNC metal shell, dust-proof and shockproof
  • Independent menu, simple display page

Voltage and Current：

  • Voltage detection range: 4-28V; 6-digit display, highest resolution up to 0.00001V
  • Current detection range: 0-7A; 6-digit display, highest resolution up to 0.00001A
  • Power monitoring range: 0-140W; 6-digit display, highest resolution up to 0.00001W
  • Energy statistics: 10 groups of switchable capacity, charge, and time data records, with built-in battery capacity calculation formula
  • Offline curve recording time: maximum support for 9 hours
  • Supports low-speed ripple drawing: sampling rate 2sps-＞100sps
  • Supports high-speed ripple drawing: maximum sampling rate 4Msps

Cable Identification:

  • PD E-Marker 240W cable detection
  • DASH cable detection
  • Cable internal resistance measurement

Application:

  • PD monitoring
  • On-board temperature measurement
  • Analog DASH cable
  • Boot-up runtime recording
  • Supports gravity sensing, automatic screen orientation switching
  • Apple 2.4A acceleration
  • Four major functional curve displays: real-time voltage-current curve, offline curve recording, D+D- voltage curve
  • High-speed power ripple measurement
  • Supports Bluetooth APP and host computer: driver-free installation, data synchronization; APP supports overvoltage and overcurrent alarms

Package Size:

  • 4.57 x 3.35 x 0.98 inches; 3.53 ounces
  • 11.60 x 8.51 x 2.49 cm; 0.100 kg

Package Contents: FNB58 USB tester
