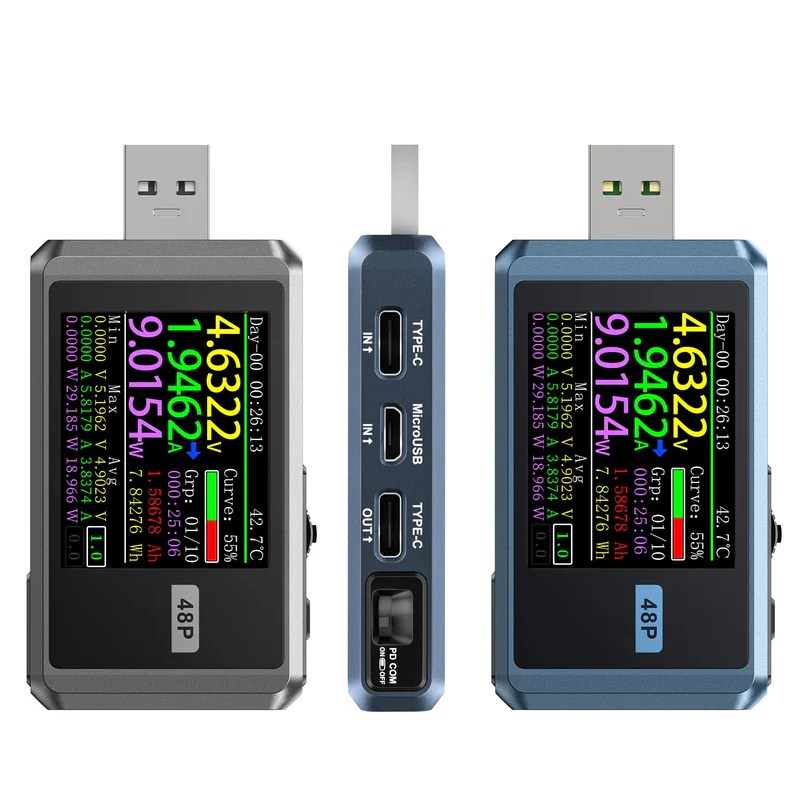

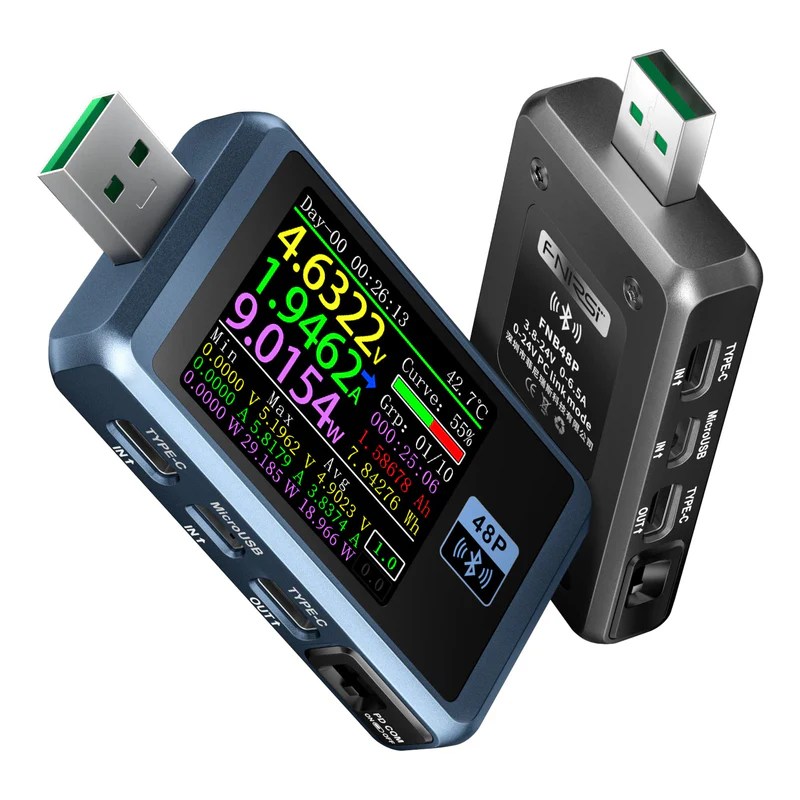

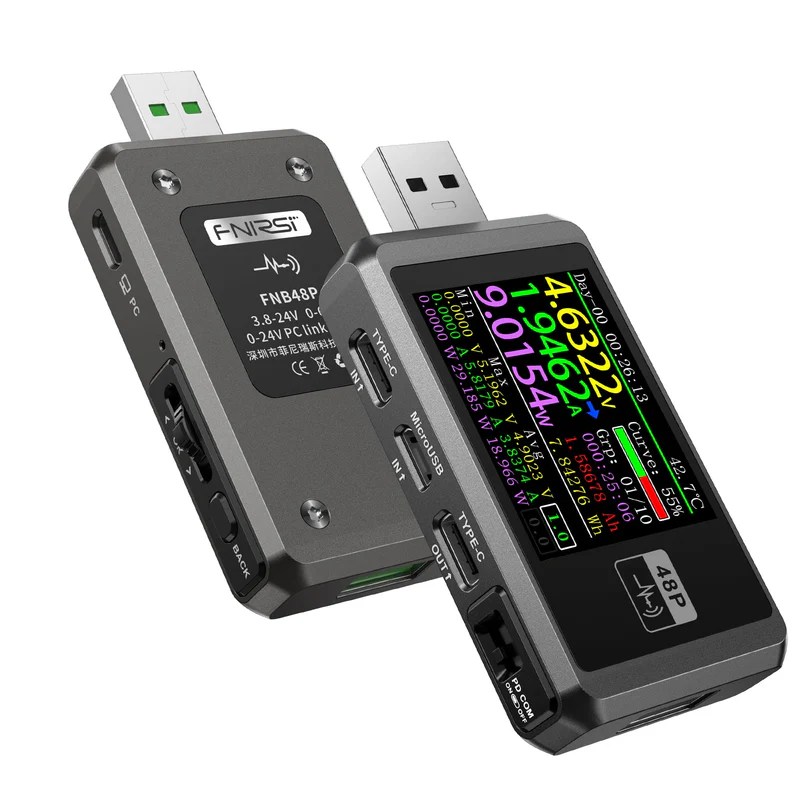

FNIRSI FNB48P USB Fast Charge Tester

FNIRSI FNB48P USB Fast Charge Tester

Original price was: ₹4,500.00.Current price is: ₹4,095.00.

  • Integrated: USB-A, Micro-USB, Type-C interfaces
  • Detects: Voltage, current, triggers
  • Mobile communication: Fast charge
  • 1.44-inch TFT LCD display
  • External 16-bit ADC
  • PD protocol physical chip
  • Drive-free PC upgrade
  • PD E-Marker read
  • Fast charge recognition && deception
  • PD protocol monitoring && conversion
  • Precision measurement
  • Data storage
  • Energy capacity detection
  • Multiple interfaces compatibility
  • Fast charge protocol detection
  • Supports: QC2.0, QC3.0, Huawei-FCP, Huawei-SCP, Samsung-AFC, PD protocol

Out of stock

The FNB48USB tester is a high-reliability, high-safety USB voltage and current detection meter and a mobile communication terminal fast charging trigger. It has a 1.77-inch TFTLCD display and integrated USB-A, Micro-USB, Type-C interfaces. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, U disks, etc.; it can be used to measure mobile phone charging power and mobile power input and output conditions; it can be used for charger fast charging protocol testing.

Basic Specifications:

  • External 16-bit ADC, PD protocol physical chip
  • Interface types:
    • 5P high-current USB-A port
    • 24P full-pin Type-C port
    • Micro-USB port

Display:

  • 1.77-inch TFT LCD color screen, resolution 160*128
  • CNC metal shell, dust-proof and shockproof

Voltage and Current：

  • Voltage detection range: 4-24V; 6-digit display, highest resolution up to 0.00001V
  • Current detection range: 0-6.5A; 6-digit display, highest resolution up to 0.00001A
  • Power monitoring range: 0-156W; 6-digit display, highest resolution up to 0.00001W
  • Energy statistics: 10 groups of switchable capacity, charge, and time data records, with built-in battery capacity calculation formula
  • Offline curve recording time: maximum support for 9 hours
  • Supports low-speed ripple drawing: sampling rate 2sps->100sps
  • Supports high-speed ripple drawing: maximum sampling rate 3.2Msps

Package Size:

  • 4.57 x 3.35 x 0.98 inches; 3.53 ounces
  • 11.61×8.51×2.49 cm; 0.100 kg
