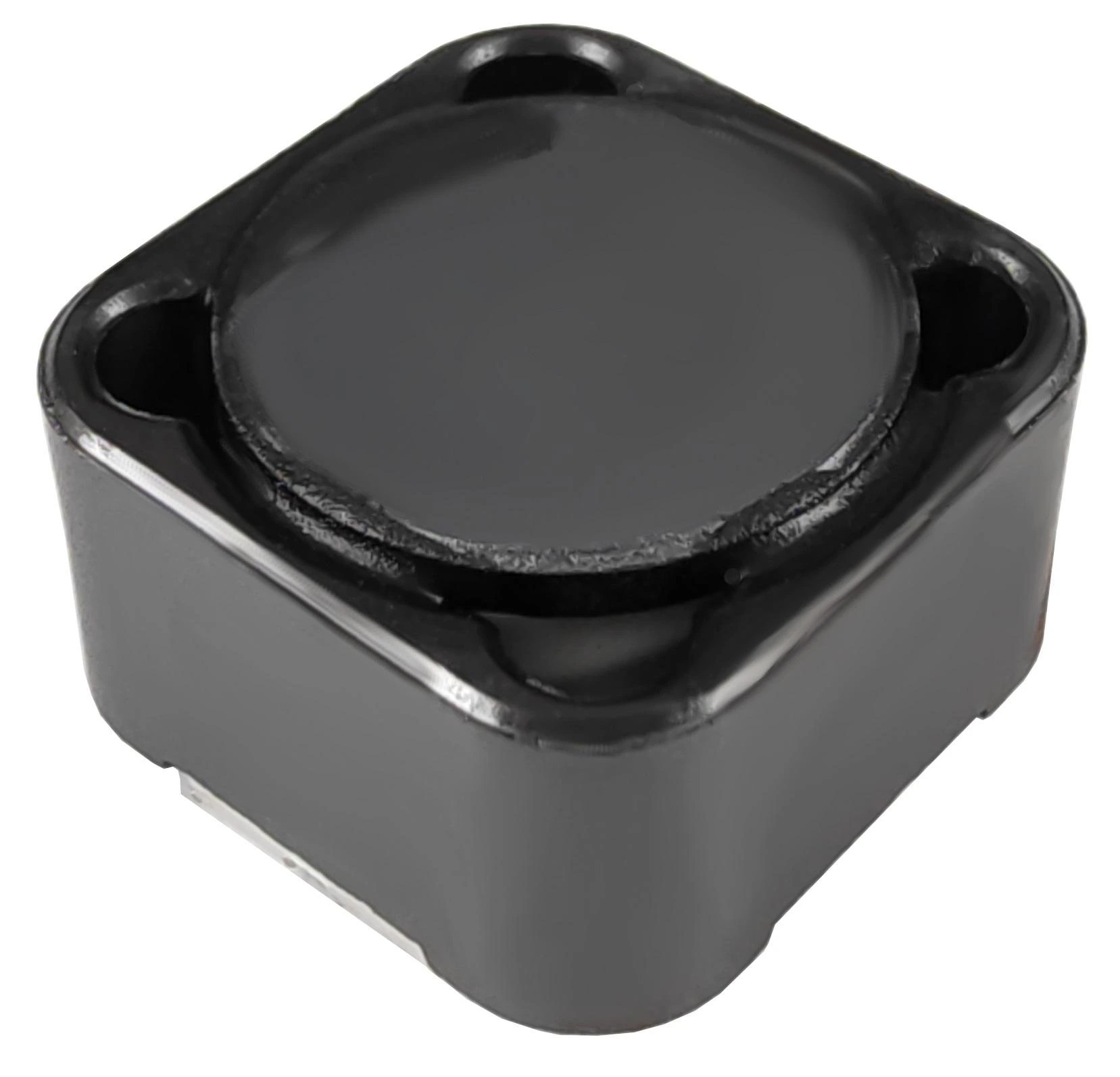

Sumida CDRH127NP-470MC

CDRH127NP-470MC Sumida America Components Inc. | Ezyki

Original price was: ₹65.00.Current price is: ₹55.00.

📦 Product Overview

  • Manufacturer: Sumida

  • Series: CDRH127

  • Part Number: CDRH127NP-470MC

  • Type: Shielded Power Inductor

  • Mounting Style: Surface Mount (SMD)

  • Package Dimensions: 12.3 mm × 12.3 mm × 8.0 mm (L × W × H)

  • Weight: Approximately 3.6 g

  • RoHS Compliant: Yes

  • Moisture Sensitivity Level (MSL): 1

Out of stock

Electrical Specifications

  • Inductance: 47 µH ±20%

  • Rated Current: 2.5 A

  • Saturation Current: 3.6 A

  • DC Resistance (DCR): 100 mΩ Max

  • Test Frequency: 1 kHz

  • Operating Temperature Range: -40°C to +100°C

Construction & Features

  • Core Material: Ferrite drum core

  • Shielding: Magnetically shielded to minimize EMI and RFI

  • Design: Drum core construction for high efficiency and low noise performance

📄 Datasheet

For detailed technical information, you can refer to the CDRH127 Series Datasheet.



🛠️ Applications

The CDRH127NP-470MC is suitable for various applications that require high-performance inductors, including:

  • DC/DC converters and power supplies

  • Motor control systems and drives

  • Automotive electronics and industrial automation

  • LED lighting and renewable energy systems

Manufacturer

Sumida
Inductance

47
Package

1207
Tolerance

20
Current Rating

3.2
