Arduino Nano Every ABX00028 (Without Header)
Original price was: ₹1,370.00.₹950.00Current price is: ₹950.00.
| Model Type | Arduino Nano Every |
| Color | Blue |
| Operating Voltage (VDC) | 5 |
| Input Voltage (limit) | 21V |
| Analog I/O Pins | 8 |
| PWM Output Pins | 5 (D3, D5, D6, D9, D10) |
| Ports | UART : 1 SPI : 1 I2C : 1 |
| LED_BUILTIN | 13 |
| Architecture | AVR |
| Clock Speed | 20 MHz |
| DC Current per I/O Pin (mA) | 20 |
| Flash Memory | 48 KB |
| EEPROM | 256byte (ATMega4809) |
| SRAM (KB) | 6 |
| Weight (gm) | 5 |
| Length (mm) | 45 |
| Width (mm) | 18 |
| Height (mm) | 6 |
Out of stock
Overview
The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!
The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects.
The Arduino Nano Every is an evolution of the traditional Arduino Nano board, but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).
An Improved Arduino Nano

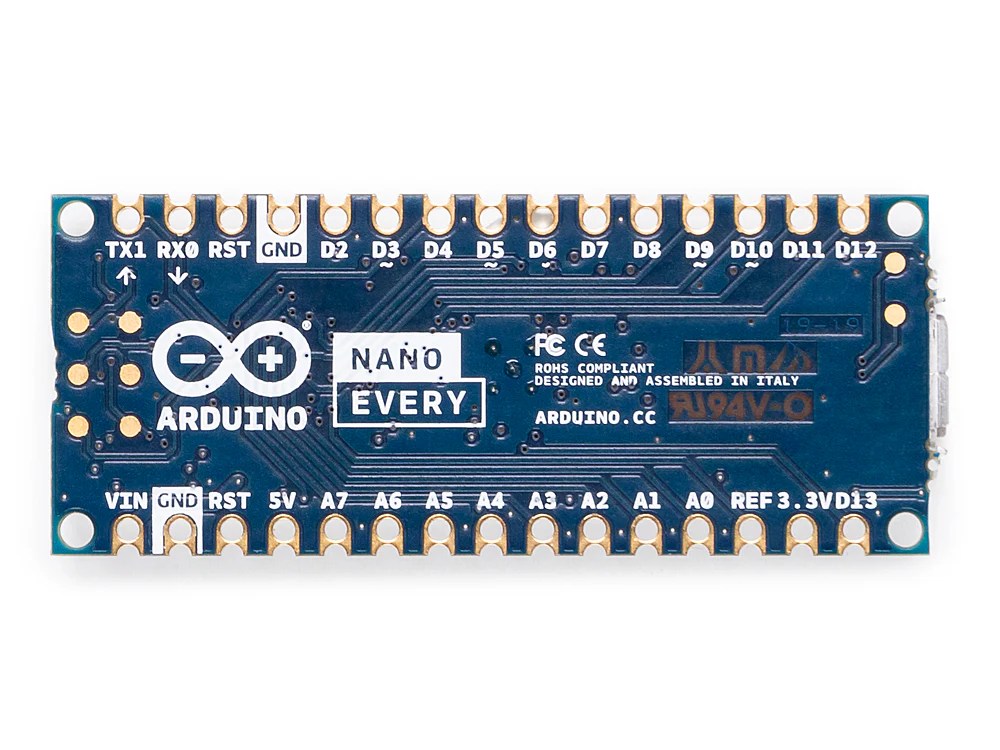

The board comes in two options: with or without headers, allowing you to embed the Nano Every inside any kind of inventions, including wearables. The board comes with tessellated connectors and no components on the B-side. These features allow you to solder the board directly onto your own design, minimizing the height of your whole prototype.
Oh, and did we mention the improved price? Thanks to a revised manufacturing process, the Arduino Nano Every costs a fraction of the original Nano … what are you waiting for? Upgrade now!
| Weight | 10 g |
|---|
