Category: Bluetooth Module

  • Sale! HC-05 Bluetooth Module

    HC-05 Bluetooth Module

     Original price was: ₹399.00.Current price is: ₹299.00.

    ⚙️ HC-05 Bluetooth Module – Key Specifications

    • Profiles: Bluetooth Serial Port Profile (SPP) for seamless wireless communication

    • Dimensions: 26.9 × 13 × 2.2 mm – compact and easy to integrate

    • Bluetooth Protocol: Bluetooth v2.0 + EDR for reliable connectivity

    • Frequency: 2.4 GHz ISM band with stable wireless range

    • Modulation: GFSK (Gaussian Frequency Shift Keying) for efficient data transmission

    • Sensitivity: -84 dBm at 0.1% BER for accurate signal reception

    • Data Speed: Asynchronous: 2.1 Mbps max / 160 kbps, Synchronous: 1 Mbps / 1 Mbps

    • Emission Power: 4 dBm, Class 2 – ideal for short-range IoT applications

    • Power Supply: +3.3V, 50 mA – energy-efficient for portable devices

    • Security: Supports authentication and encryption for safe wireless communication

    • Operating Temperature: -20°C to +75°C – reliable in diverse environments

    Add to cart

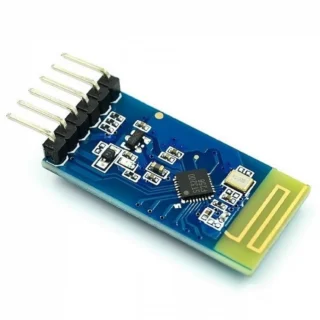

  • Sale! JDY-33 Dual Mode Bluetooth Module

    JDY-33 Dual Mode Bluetooth Module | HC-05/06 Compatible

     Original price was: ₹225.00.Current price is: ₹120.00.
    Model JDY-33
    Bluetooth Version Bluetooth 3.0 SPP + BLE4.2
    Communication Interface UART
    Operating Temperature Range -40°C to 80°C
    Operating Voltage 1.8 – 3.6V
    Receiving Sensitivity -96dbm
    Transmission distance 30M
    Transmit Power 6db
    Working Current 6.5mA
    Working Frequency 2.4GHZ
    Length 31 mm
    Height 3 mm
    Width 16 mm
    Add to cart
